Amiad Automatic filter fibreglass reinforced nylon DN100 flange 8bar 100micron 0,1 mm stainless steel 316 9-12VDC latch black/green type Mini Sigma Angle
Product number: 7038404
Manuals & drawings
Select your item below or order directly via
full product table
All displayed prices are gross prices. Please log in or contact sales for custom pricing.
Price excl. VAT
£5,515.51 / 1 pcs
£5,515.51 / pcs
Price incl. VAT
£6,618.61 / 1 pcs
£6,618.61 / pcs
Out of stock in Veghel, NL
Frequently bought together
0309063
0464482
0411804
0706520
Technical details
-
TypeMini Sigma Angle
-
Material filter elementstainless steel 316
-
Material sealEPDM
-
Max. temp.60 °C
-
Voltage9-12VDC latch
-
Filtration0,1 mm
-
Materialfibreglass reinforced nylon
-
Backflush flow rate10,0 m³/h
-
Pressure8 bar
-
Connectionflange
-
Backflush Outlet1 1/2 "
-
Colourblack/green
-
Capacity80 m³/h
-
Length1512 mm
-
Filter area0.24 m²
-
EAN4019305778374
-
Part number7038404
-
ManufacturerAmiad
Product description

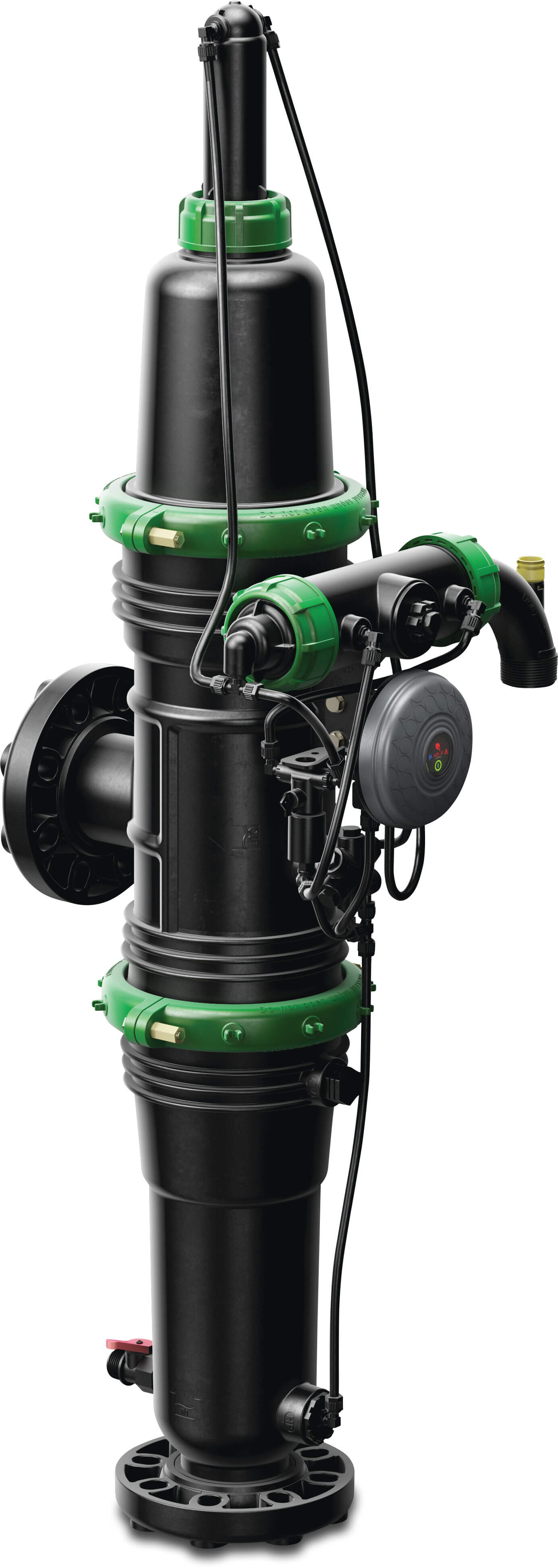

The Amiad Mini Sigma for Angle installations.
Amiad ADI-P 12VDC controller with a 2W-Latch solenoid allows the user to monitor and control the filter from the Amiad app on your mobile via Bluetooth.
The app will provide the following information:
- DP and flush cycle counters.
- Alerts (low/high pressures) and low battery.
- Reports and performance history data.
Self-cleaning cycle is triggered by an integrated DP switch which is initiated by: a Pre-set 0.5 signal from DP switch, a time interval or a manual start.
Flushing time of 10 seconds.
Delivered with 1.5'' flush valve.
