How to Measure Water Pressure and Flow Rate for an Irrigation System
How to Measure a Water Source: Pressure and Flow in an Irrigation System
A well-designed irrigation system starts with assessing the water source. Before selecting sprinklers, planning zones or beginning installation, you need to know what your water supply can deliver. The two most important parameters are water pressure and flow rate.
Measuring them is straightforward and provides essential information for the next stages of system design. It allows you to assess the capacity of the water source and compare it with the requirements of the equipment that will operate within the system. In this article, we explain how to measure a water source, how to take the basic measurements and what to consider when interpreting the results.
Contents
- Which Water Source Parameters Should You Measure?
- Why Does Water Pressure Matter When Designing an Irrigation System?
- How to Measure Water Pressure
- Static vs Dynamic Pressure: What's the Difference?
- How to Measure Water Flow Rate
- Measuring Water Pressure and Flow Rate in Practice
- Why Should Pressure and Water Source Capacity Be Assessed Together?
- How Do the Measurements Affect Sprinkler Selection?
- How Do Water Source Parameters Affect System Zoning?
- Does the Type of Water Source Affect How Measurements Are Interpreted?
- How to Measure Water Source Parameters Step by Step
- What Should You Do If the Pressure or Flow Rate Is Too Low?
- Measuring a Water Source: Key Takeaways
- Key Points at a Glance
Which Water Source Parameters Should You Measure?
Before starting the design, you should determine two key parameters: pressure and available flow rate. Pressure indicates the conditions under which water is supplied to the system, while flow rate indicates how much water is available over a given period.
These two values are interrelated and should be considered together. This is important because an acceptable pressure reading taken when no water is being drawn does not necessarily mean that the same conditions will be available once the system is operating. As soon as water begins to flow, pressure losses occur within the system.
Knowing the parameters of the water source gives the designer a reliable starting point for further calculations. It allows the available supply to be compared with the technical requirements of sprinklers and other components so that the entire system can be planned accordingly.
Why Does Water Pressure Matter When Designing an Irrigation System?
Every sprinkler is designed to operate within a specific pressure range. This information is provided in the manufacturer's technical documentation and should be taken into account when selecting equipment.
If the pressure is lower than required, the equipment may not achieve its specified performance under the intended operating conditions. With pop-up sprinklers, insufficient pressure can affect both sprinkler pop-up and subsequent operation. It can also affect performance characteristics such as spray radius and water distribution.
There is no single pressure value that is suitable for every project. Requirements vary depending on the type of equipment used. The measured pressure should therefore always be compared with the requirements of the sprinklers specified for the particular installation.
How to Measure Water Pressure
For a basic pressure measurement, you will need a pressure gauge. Connect it as close as possible to the point from which the irrigation system will be supplied – for example, an outdoor tap.
Start by measuring the static pressure, which is the pressure in the system when no water is being drawn. During the measurement, all other outlets should be closed. The pressure gauge will then show the pressure in the system under no-flow conditions.
Record the result together with the unit of measurement. In irrigation systems, pressure is commonly expressed in bar. You may also encounter pressure expressed in atmospheres, so always check the units when comparing your measurements with equipment specifications.
Static vs Dynamic Pressure: What's the Difference?
Measuring static pressure alone does not provide a complete picture of the system's operating conditions. Once a tap is opened and water begins to flow, conditions within the system change. This is why dynamic pressure, or operating pressure, is also important when designing an irrigation system.
Pressure losses occur whenever water flows through the system, including through pipes, fittings and valves. As a result, the pressure available during operation may be lower than the pressure measured when no water is being drawn.
In practice, the key question for a designer is not simply "What is the pressure?" but rather: How much pressure is available at the required flow rate? This provides a much more accurate picture of the conditions under which the system will actually operate.
We discuss low-pressure troubleshooting and ways to increase water pressure in more detail in our article "Water Pressure – How to Increase Water Pressure in Gardens and Homes."
How to Measure Water Flow Rate
The second key parameter is the available flow rate – the volume of water delivered over a given period. For a simple test, you will need a container of known capacity and a stopwatch.
For example, you can use a 10-litre bucket. Open the tap and measure how many seconds it takes to fill the bucket completely. You can then use this time to calculate the flow rate in litres per minute.
For example, if a 10-litre container takes 15 seconds to fill:
10 l ÷ 15 s × 60 s = 40 l/min
The resulting flow rate is 40 litres per minute. Converted to an hourly rate:
40 l/min × 60 min = 2,400 l/h = 2.4 m³/h
These figures are provided solely to illustrate the calculation. When designing an irrigation system, always use the results of an actual measurement taken from the specific water source.
Measuring Water Pressure and Flow Rate in Practice

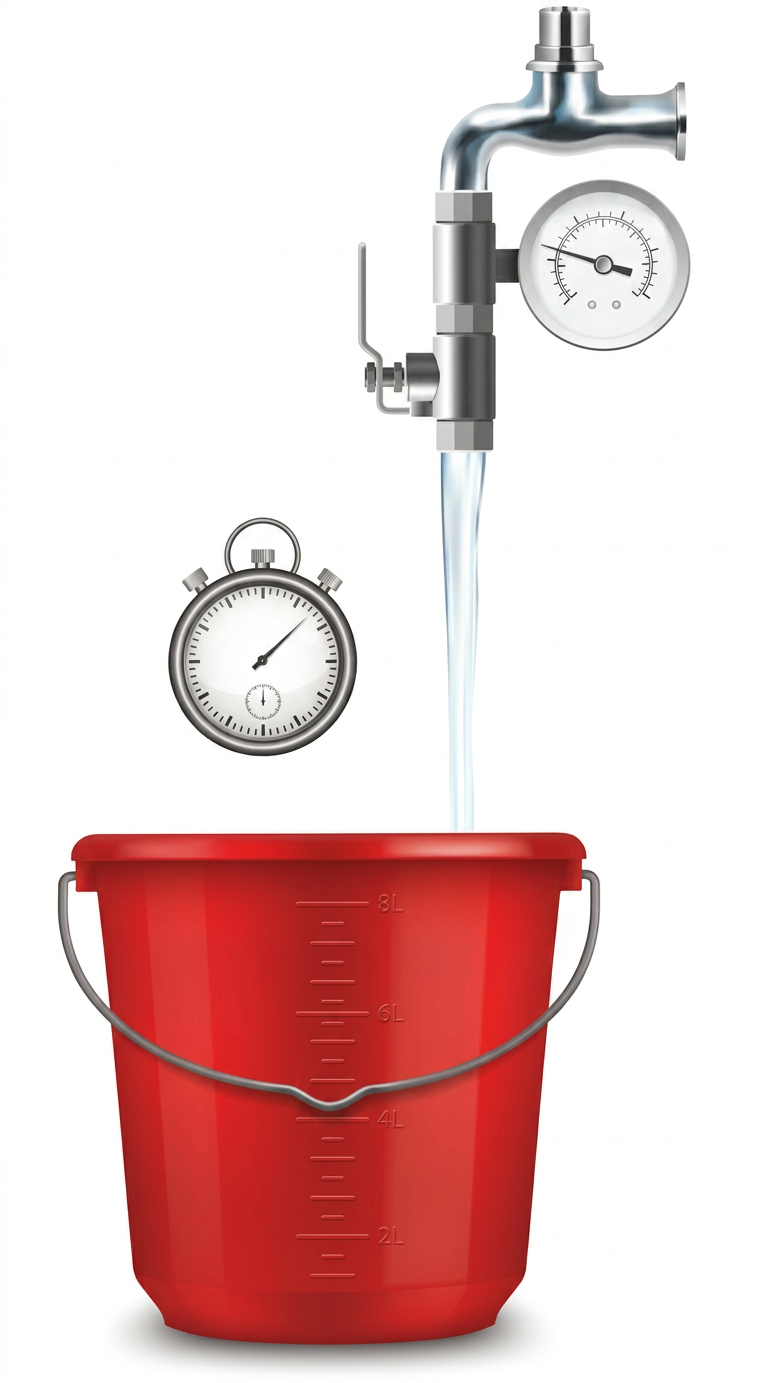

A basic assessment of the water source therefore requires only a few simple tools: a pressure gauge, a container of known capacity and a stopwatch. The graphic below shows how to take both measurements and provides an example flow-rate calculation.
Fig. 1. Measuring water pressure and flow rate before designing an irrigation system.
Why Should Pressure and Water Source Capacity Be Assessed Together?
Pressure and water source capacity describe different characteristics of the water supply, so one should never be treated as a substitute for the other. A source may provide a certain pressure under no-flow conditions, but those conditions can change once water is being drawn.
This is particularly important when designing irrigation zones. Every device operating within the system requires a specific amount of water at a specific pressure. The combined flow rate of all devices operating simultaneously should therefore be compared with the capacity of the water source and the hydraulic conditions within the system.
This is why, particularly in larger systems, a simple bucket test is no substitute for hydraulic calculations. Pipe diameters and lengths, fittings and valves, as well as pressure losses between the water source and the equipment, must also be taken into account.
How Do the Measurements Affect Sprinkler Selection?
Once you know the basic parameters of the water source, you can compare them with the equipment specifications. For sprinklers, manufacturers provide performance data showing the relationship between pressure, flow rate and operating characteristics for specific models and nozzles.
For effective irrigation, equipment should operate within the manufacturer's specified range. This is essential for achieving the intended performance and ensuring proper water distribution. For this reason, sprinklers should not be selected before the capacity of the water source has been assessed.
In practice, the sequence is simple: measure first, check the equipment requirements next, and only then design the irrigation zones. This approach reduces the risk of designing a system whose equipment requires more flow or pressure than the water source can provide.
How Do Water Source Parameters Affect System Zoning?
In automatic irrigation systems, equipment is usually divided into zones. One reason for doing this is to keep the system's instantaneous water demand within the capacity of the water source.
If all the planned sprinklers cannot operate simultaneously under the available conditions, they should be divided into appropriate zones. Individual sections of the system can then operate in sequence using valves controlled by the irrigation controller.
This does not mean, however, that the entire measured flow rate can be allocated when designing the system without accounting for the other components. The design must include pressure-loss checks and appropriate hydraulic calculations. The more extensive the system, the more important a detailed analysis becomes.
Does the Type of Water Source Affect How Measurements Are Interpreted?
Yes. How the results should be interpreted depends, among other things, on whether the water comes from the mains water supply, a well or a pump-fed system.
With a mains water supply, taking a basic measurement at the tap provides an indication of the conditions at that particular point in the system. However, mains supply parameters can fluctuate. If the garden will primarily be irrigated in the morning or evening, it is worth taking into account the conditions that occur during the intended operating hours.
Pump-fed systems are more complex. A pump's flow rate is related to its head, so its performance should not be assessed solely on the basis of a single measurement at the tap. The pump's performance curve and the operating conditions of the entire system must also be considered. When the water source is a well, the capacity of the well itself is another important factor.
How to Measure Water Source Parameters Step by Step
Before taking any measurements, it is worth approaching the process systematically. First, identify the type of water source and the point at which the planned irrigation system will connect to it.
Then:
- Connect a pressure gauge and measure the static pressure.
- Check the conditions while water is flowing.
- Use a container and stopwatch to determine the available flow rate.
- Record the results together with their units.
- Compare the results with the requirements of the equipment specified for the project.
Only once you have this information should you move on to the next stages: selecting sprinklers, determining how many devices can operate within each zone, and designing the system itself. This ensures that the installation is based on actual data from the site where the irrigation system will be installed.
What Should You Do If the Pressure or Flow Rate Is Too Low?
If the measurements suggest that the available parameters may be insufficient for the planned system, do not immediately choose a method for increasing the pressure. First, identify the cause and determine where the restriction occurs.
In some cases, redesigning the zones may be sufficient. In others, it may be necessary to assess pipe diameters, filters, valves, the pump or other system components. The solution should be based on the characteristics of the specific installation rather than on a one-size-fits-all assumption.
As this requires a separate diagnostic process, we will not cover it in detail here. For more information about the causes of water pressure problems and ways to address them, see our article "Water Pressure – How to Increase Water Pressure in Gardens and Homes."
Measuring a Water Source: Key Takeaways
Measuring the water source is one of the first steps in preparing an irrigation system design. It allows you to determine the conditions available at the installation site and compare them with the requirements of the equipment.
The most important point is to assess pressure and flow rate together. Static pressure alone – or flow rate alone – does not provide a complete picture of the conditions under which the system will operate.
For designers and installers, this means being able to make decisions based on actual data. Accurate measurements make it easier to select equipment and divide the system into zones, while also providing a reliable starting point for further hydraulic calculations.
Key Points at a Glance
- Before designing an irrigation system, check the water pressure and available flow rate.
- Use a pressure gauge to take a basic pressure measurement.
- Measure static pressure when no water is being drawn, and assess operating conditions while water is flowing.
- A container of known capacity and a stopwatch can be used for an initial flow-rate test.
- Compare the measurement results with the technical requirements of the equipment.
- The number of sprinklers operating simultaneously must be matched to the capacity of the water source and the hydraulic conditions within the system.
- For pump-fed systems, take the pump's performance characteristics into account.
- If the available pressure or flow rate is insufficient, identify the cause before selecting a solution.
- Measure first, then calculate and select the equipment – this sequence provides a solid foundation for designing an effective irrigation system.
