DAB Drenag 1000 MNA Submersible pump stainless steel 304 1 1/2" female thread 6A 230VAC stainless steel

Product number: 7038201
Skip image gallery
DAB Drenag 1000 MNA Submersible pump stainless steel 304 1 1/2" female thread 6A 230VAC stainless steel
DAB Drenag 1000 MNA Submersible pump stainless steel 304 1 1/2" female thread 6A 230VAC stainless steel
DAB Drenag 1000 MNA Submersible pump stainless steel 304 1 1/2" female thread 6A 230VAC stainless steel
Select your item below or order directly via full product table
Type
Max. head
Power
All displayed prices are gross prices. Please log in or contact sales for custom pricing.
Price excl. VAT £1,025.19 / 1 pcs
£1,025.19 / pcs
Price incl. VAT £1,230.23 / 1 pcs
£1,230.23 / pcs
Please contact us to check availability - our sales team can advise on stock
pcs
Box qty:
1 pcs
MSQ:
1 pcs

Fast, free shipping on orders over £450*

Your trade partner in water technology

9.1/10 Read reviews

Frequently bought together

Itap Foot valve spring loaded brass 1 1/2" female thread 18bar DN40 stainless steel 304 type Europa 105
0412105
Itap Foot valve spring loaded brass 1 1/2" female thread 18bar DN40 stainless steel 304 type Europa 105

£37.24
Profec Inline Filter brass 1 1/2" female thread 16bar 550micron stainless steel 304
0410715
Profec Inline Filter brass 1 1/2" female thread 16bar 550micron stainless steel 304

£31.38
Profec Socket PVC-U 1 1/2" female thread 16bar grey with stainless steel ring type reinforced
0100725
Profec Socket PVC-U 1 1/2" female thread 16bar grey with stainless steel ring type reinforced

£4.21
Profec Elbow 90° PVC-U 1 1/2" female thread 10bar grey with stainless steel ring type reinforced
0100304
Profec Elbow 90° PVC-U 1 1/2" female thread 10bar grey with stainless steel ring type reinforced

£6.40
Profec Nr. 270 Socket stainless steel 316 1 1/2" female thread 16bar
0080147
Profec Nr. 270 Socket stainless steel 316 1 1/2" female thread 16bar

£7.71
Quick coupler stainless steel 316 1 1/2" male part Camlock x female thread 16bar type Camlock A
0075084
Quick coupler stainless steel 316 1 1/2" male part Camlock x female thread 16bar type Camlock A

£22.68
Profec Nr. 180 Cross-piece stainless steel 316 1 1/2" female thread 16bar
0080322
Profec Nr. 180 Cross-piece stainless steel 316 1 1/2" female thread 16bar

£21.06
Profec Nr. 90 Elbow 90° stainless steel 316 1 1/2" female thread 16bar
0080012
Profec Nr. 90 Elbow 90° stainless steel 316 1 1/2" female thread 16bar

£12.95
Profec Nr. 16 Socket steel galvanised 1 1/2" female thread 16bar
1071040
Profec Nr. 16 Socket steel galvanised 1 1/2" female thread 16bar

£3.65
Profec Nr. 312 Nut stainless steel 316 1 1/2" female thread 16bar
0080722
Profec Nr. 312 Nut stainless steel 316 1 1/2" female thread 16bar

£4.48

Technical details

  • Float
    not included
  • A mm
    215
  • Max flow rate
    18 m³/h
  • Max. temperature
    35 °C
  • Ampere
    6 A
  • Colour
    stainless steel
  • Pump body
    stainless steel 304
  • Connection
    female thread
  • Size
    1 1/2"
  • D mm
    71
  • Voltage
    230VAC
  • Frequency
    50 Hz
  • C mm
    175
  • Material impeller 1
    stainless steel 304
  • Output Power
    1,36 HP
  • Material
    stainless steel 304
  • EAN
    4019305777261
  • Part number
    7038201
  • Manufacturer
    DAB

Dimensions

  • H
    413 mm
  • H-1
    385 mm

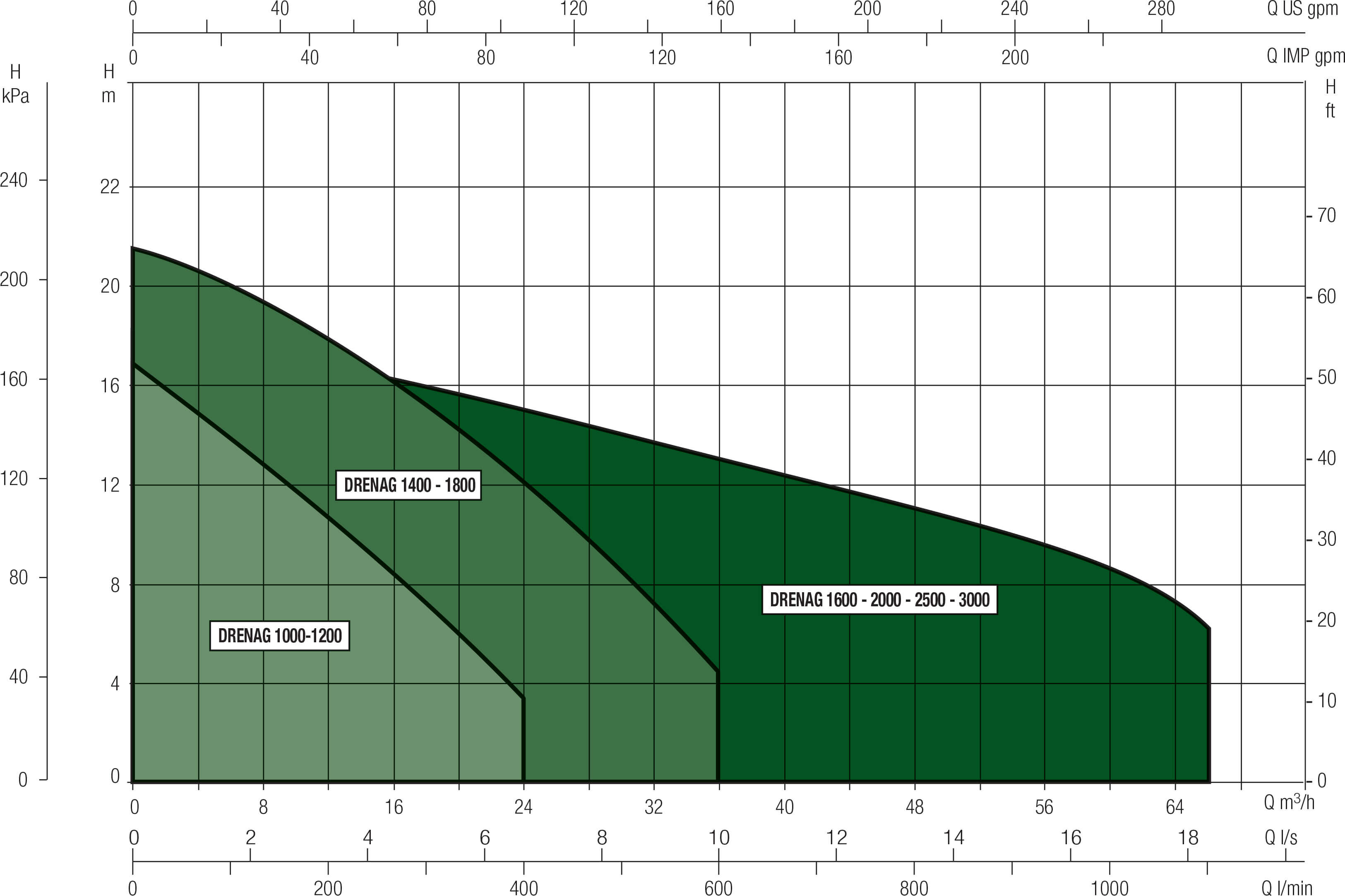

Graph
Technical drawing

Variants

Product number:
Price
Box qty
MSQ
Stock
No variants found
Adjust or clear the selected filters to see available variants.
7038199
Drenag 300 MA
7 m
0.25 kW
£311.10
1
1
(4)
7038200
Drenag 600 MA
10 m
0.45 kW
£437.31
1
1
(4)
7038201
Drenag 1000 MNA
15,3 m
1 kW
£1,025.19
1
1
7043231
Drenag 1000 MA
15,3 m
1 kW
£1,380.80
1
1
7038202
Drenag 1200 MA
17 m
1.2 kW
£1,109.36
1
1
