What makes ESYBOX different?
Every ESYBOX model shares the same underlying idea: a fully integrated, electronically controlled booster set rather than a separate pump, tank and control panel.
|
✣
Constant pressure, on demand
An electronic frequency inverter continuously adjusts the pump to the required flow, keeping pressure stable at every outlet.
|
▣
Fully integrated design
Pump, inverter, sensors, non-return valve and expansion vessel come in one compact housing — no extra tanks or panels to source.
|
◇
Quiet, energy-optimised operation
Inverter control avoids unnecessary starts and draws only the energy the system needs, reducing both noise and running costs.
|
◎
Smart monitoring, where supported
Selected models connect to the DAB H2D or DConnect apps for remote monitoring, diagnostics and configuration.
|
Where can ESYBOX be used?
Not every ESYBOX model suits every application. Use this overview to see which family members are relevant to your project.
|
Commercial building pressure boosting
Larger buildings, hotels and multi-storey developments with higher demand and multi-pump sets.
MAX
|
Gardens & irrigation
Boosting pressure for garden taps, hose reels and irrigation systems.
MINI 3 KIWA
DIVER
|
|
|
Rainwater utilisation
Drawing stored rainwater from a tank for appropriate non-drinking applications.
DIVER
|
Groundwater
Water extraction from wells and boreholes using a submerged, electronically controlled pump.
DIVER
|
Which ESYBOX do you need?
Five models cover the journey from a single flat to a commercial plant room. Explore each one below.

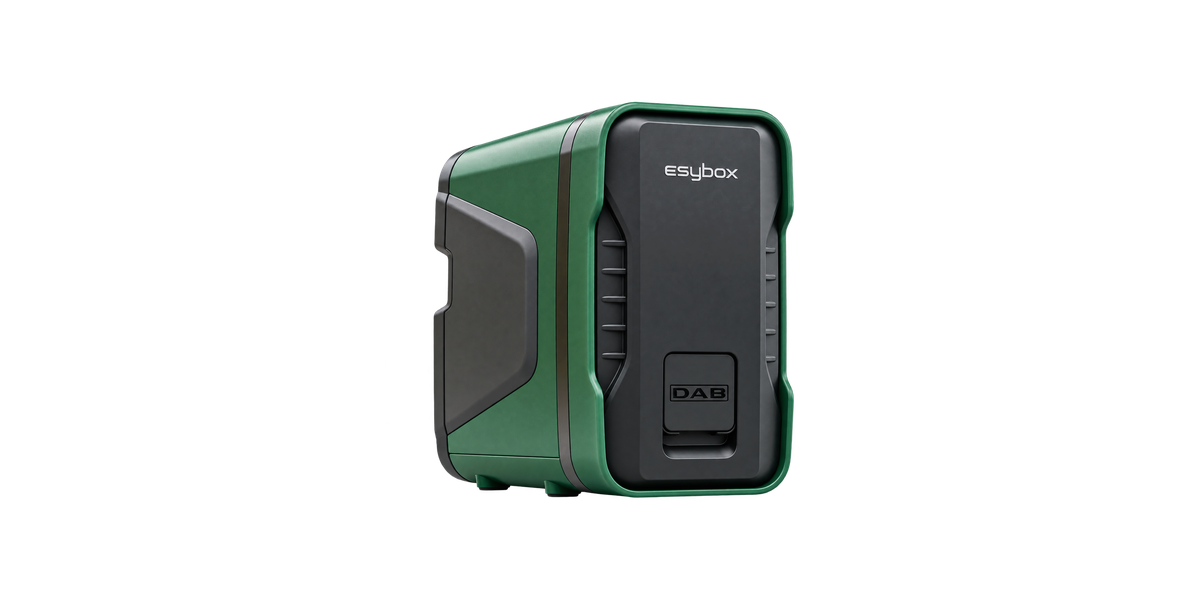

ESYBOX POP
DAB's smallest, lightest all-in-one booster — for flats and tight installation spaces.
• 122×209×225mm, 9kg
• Plug-and-play, no accessories
• H2D app control

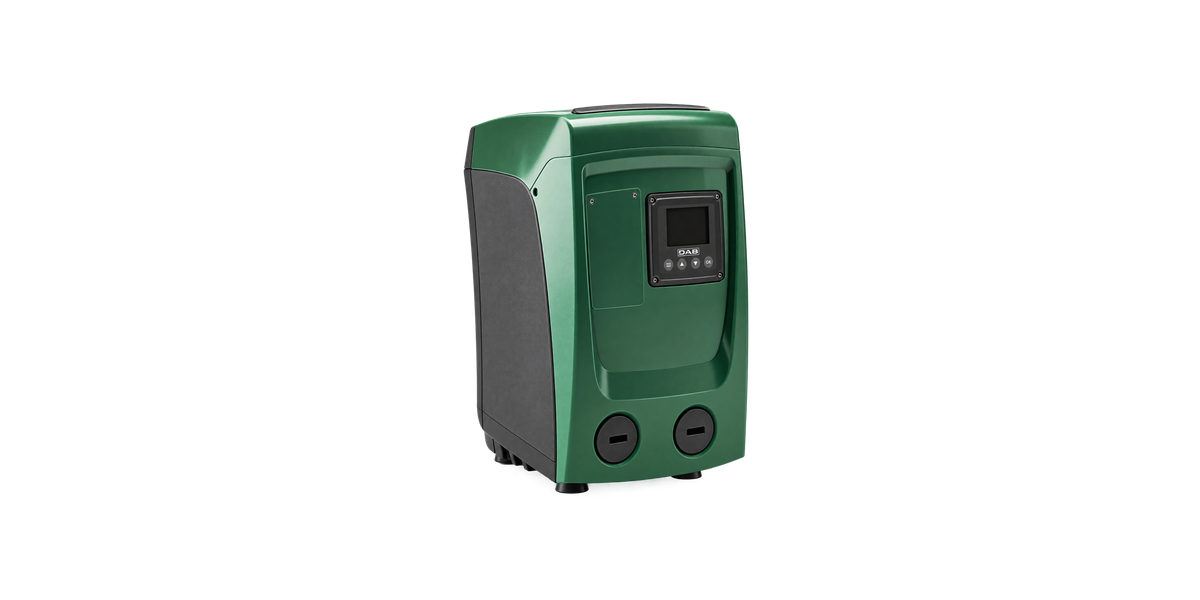

ESYBOX MINI³
Compact, fully integrated set for homes up to three floors and a small garden.
• 3-impeller, extra-quiet design
• Vertical, horizontal or wall mount
• Wireless twin-pump option

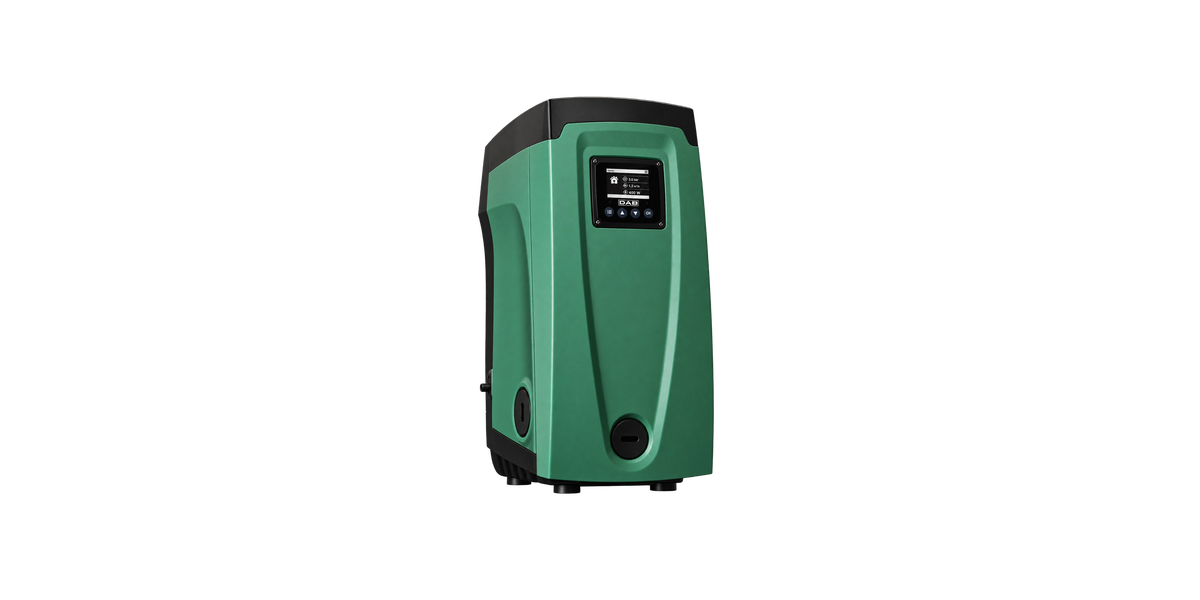

ESYBOX
The original patented all-in-one booster, for houses and small apartment blocks.
• Up to 6 floors / 9 apartments
• Wireless sets of up to 4 pumps
• EsyDock / EsyTank accessories

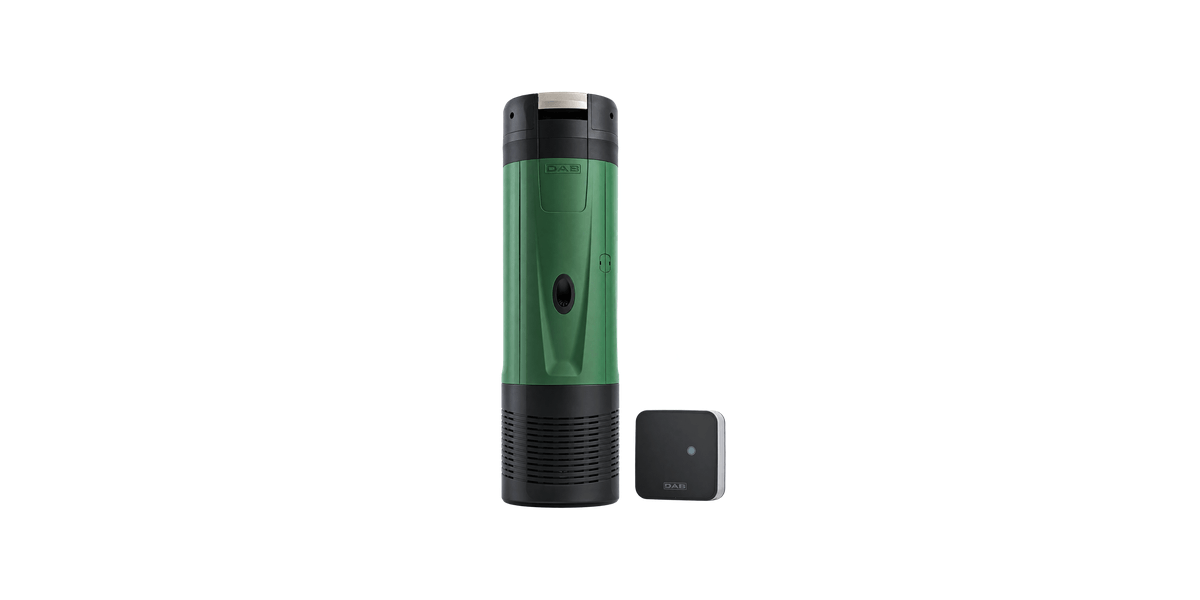

ESYBOX DIVER
The first electronically controlled submersible pump in the range, for wells, tanks and boreholes.
• Integrated frequency inverter
• DConnect Box 2 remote control
• Also mounts as surface pump (DOC68)

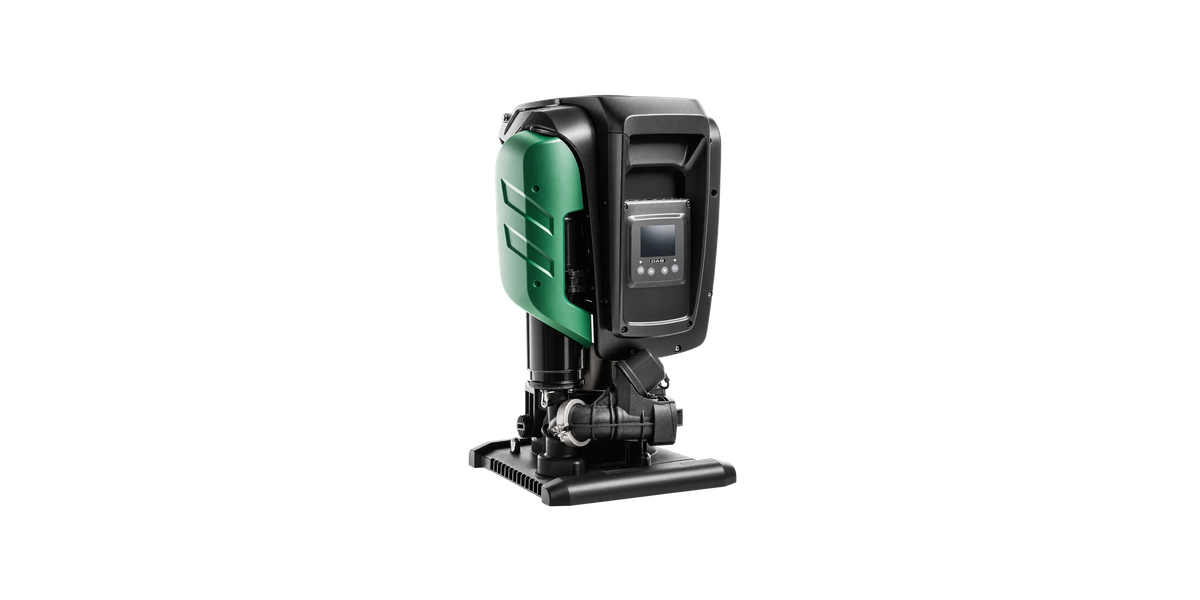

ESYBOX MAX
The commercial-scale evolution of ESYBOX, for larger buildings, hotels and hospitals.
• Modular 2–4 pump sets
• On-Site Assembly (OSA)
• ~20% energy saving vs. traditional sets
H₂D
Smart water management for compatible ESYBOX systems, with remote monitoring and control through the DAB H2D platform.
• Remote system monitoring
• Alerts and diagnostics
• Settings and system control
Compare the ESYBOX range
| ESYBOX POP | ESYBOX MINI3 | ESYBOX | ESYBOX DIVER | ESYBOX MAX | |
|---|---|---|---|---|---|
| Primary environment | Small flat | Home + garden | House / small block | Well / tank / borehole | Commercial building |
| Typical application | 1–2 bathroom flats, renovation | Homes up to 3 floors | Houses, up to 9 apartments | Groundwater, rainwater, irrigation | Hotels, hospitals, multi-storey |
| Installation concept | Plug-and-play, wall/floor | Vertical, horizontal, wall | Vertical, horizontal, wall | Fully submerged (or surface with DOC68) | Modular, on-site assembly |
| Pressure boosting | Yes | Yes | Yes | Yes | Yes |
| Submerged installation | – | – | – | Yes | – |
| Residential | Yes | Yes | Yes | Yes | – |
| Commercial | – | – | – | – | Yes |
| Smart connectivity | H2D | H2D | H2D | DConnect | DConnect |

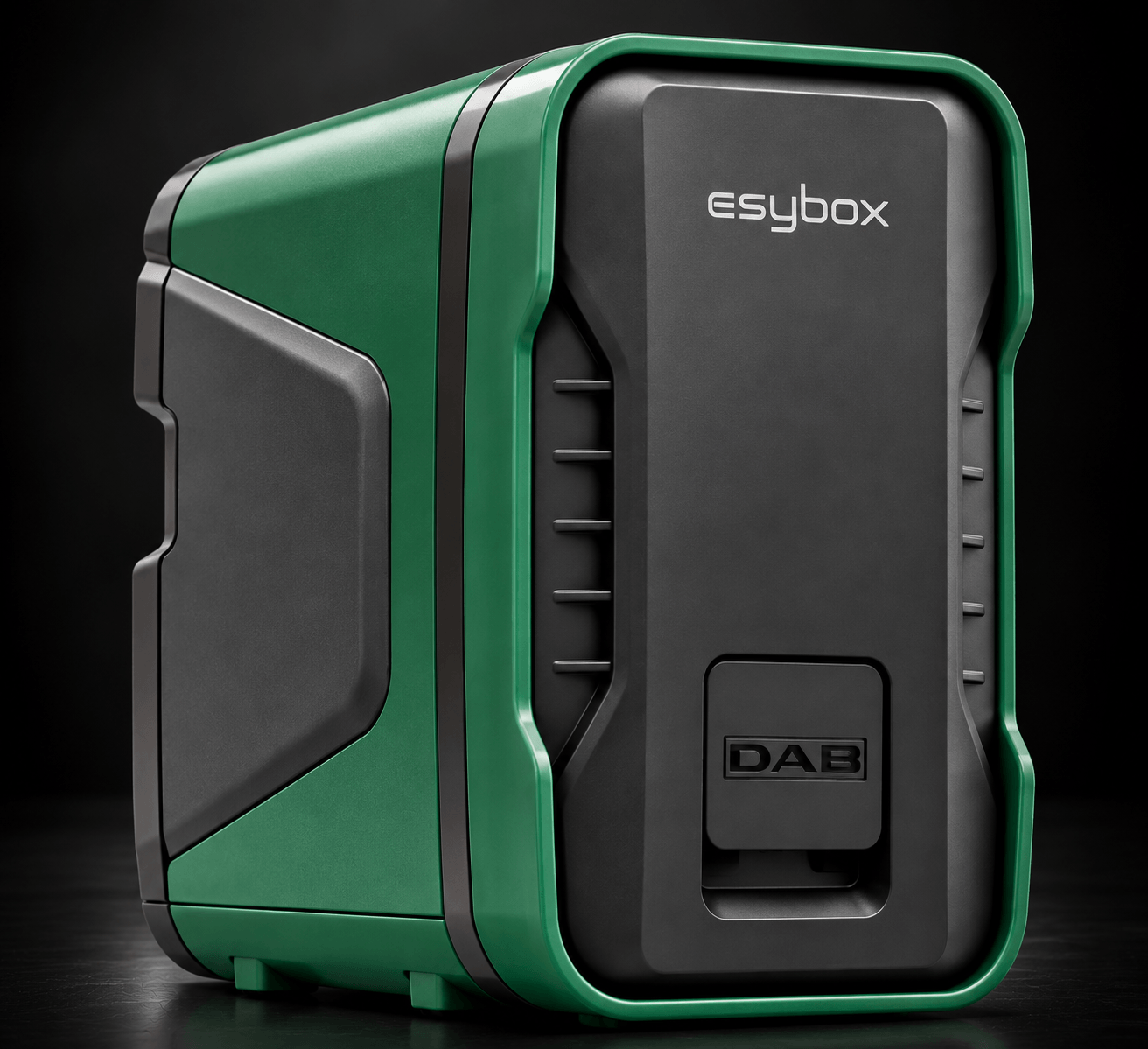

ESYBOX POP
The newest and most compact member of the ESYBOX Line: all of DAB's booster technology in a lightweight, fully assembled unit designed for flats and tight installation spaces.
Where it's installed: outdoors under IPX5 protection, in bathrooms for a power-shower boost, under kitchen sinks, or as a like-for-like replacement for an old, noisy pump after renovation.

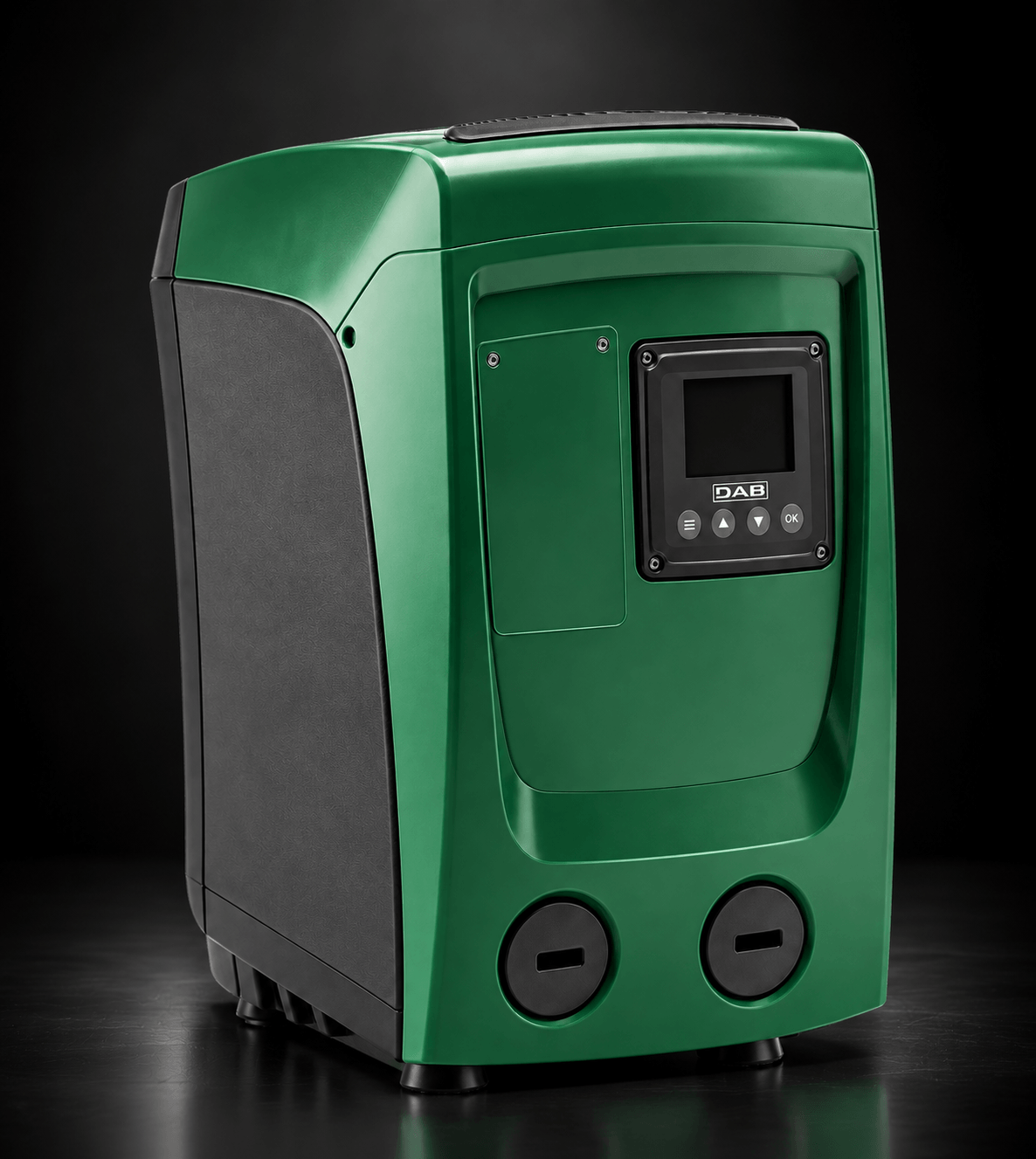

ESYBOX MINI3
One of a kind: a small, completely integrated booster set that uses DAB's most advanced technology to hold constant pressure to demand, optimising energy use along the way.
Suits: apartments up to three storeys, two bathrooms and around 50m² of garden — for drinking water, domestic use and light irrigation.

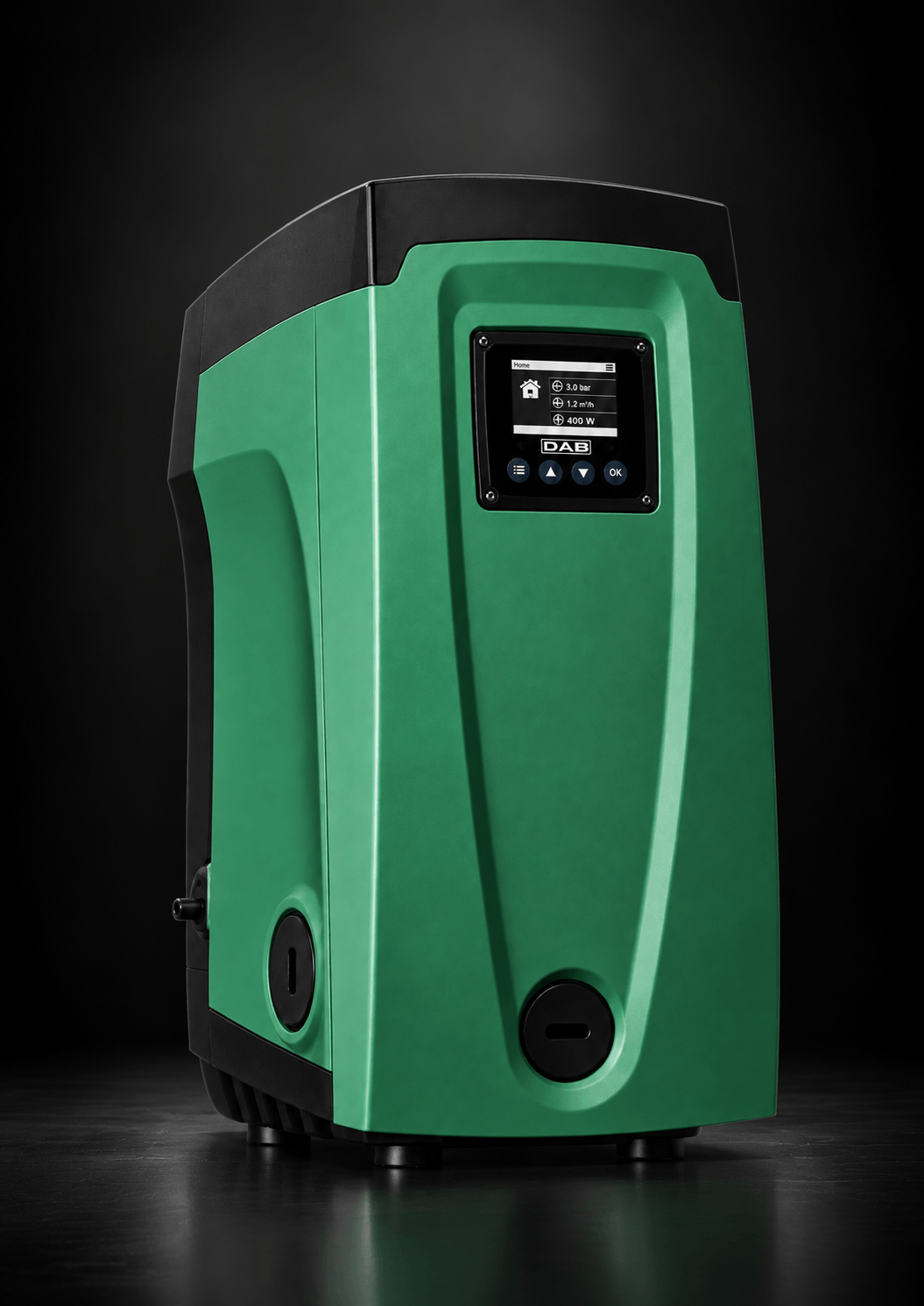

ESYBOX
The original patented, fully integrated electronic booster set that started the ESYBOX Line — built for houses and small apartment blocks with more demand than MINI3 is designed for.
Suits: single houses or small apartment blocks up to six floors and around nine flats.

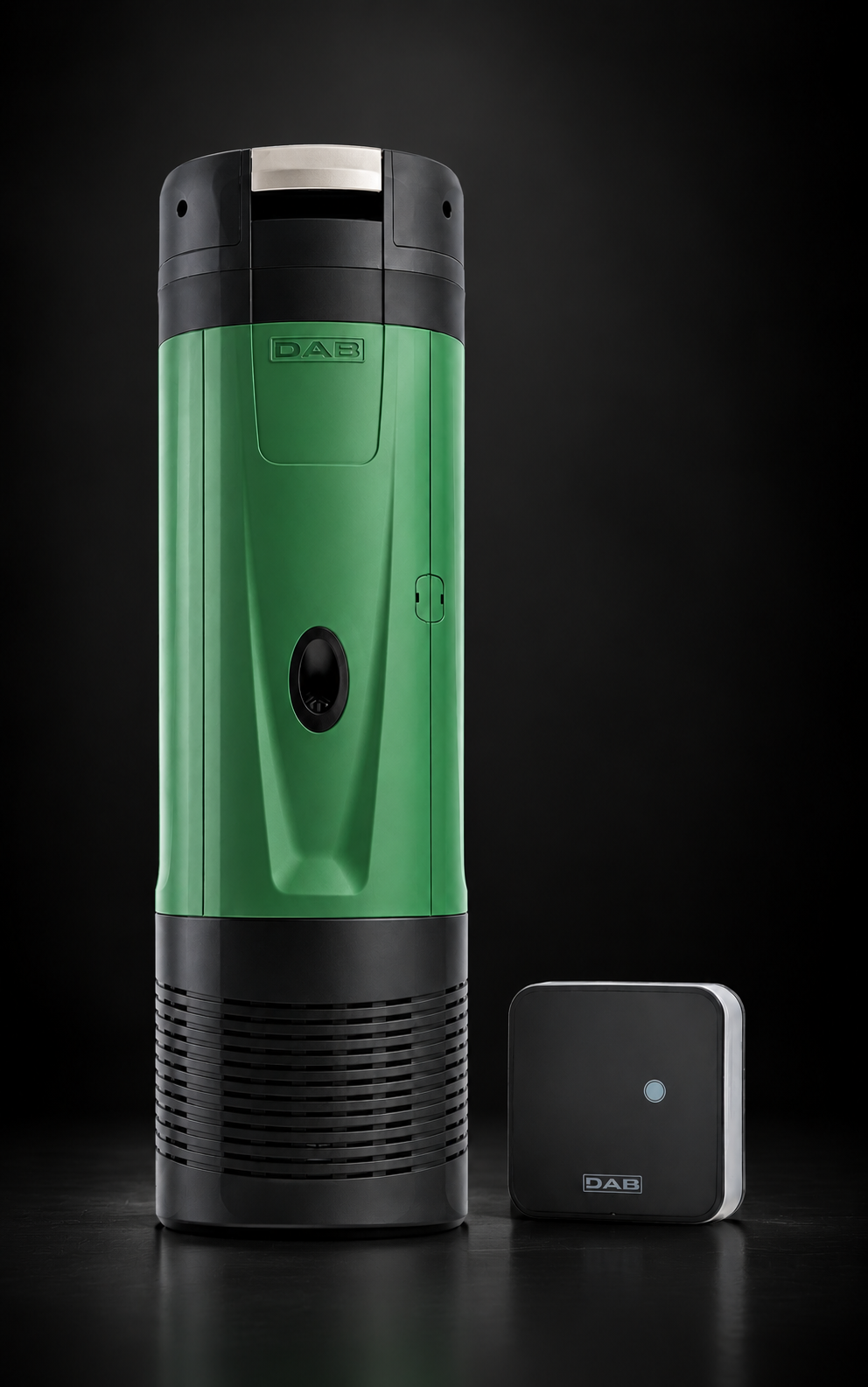

ESYBOX DIVER
The first electronically regulated submersible pump in the range, combining an integrated frequency inverter with a remote-control interface: from water source to outlet in one system.
Suits: pressure boosting from wells and boreholes, garden irrigation, and reuse of stored rainwater.

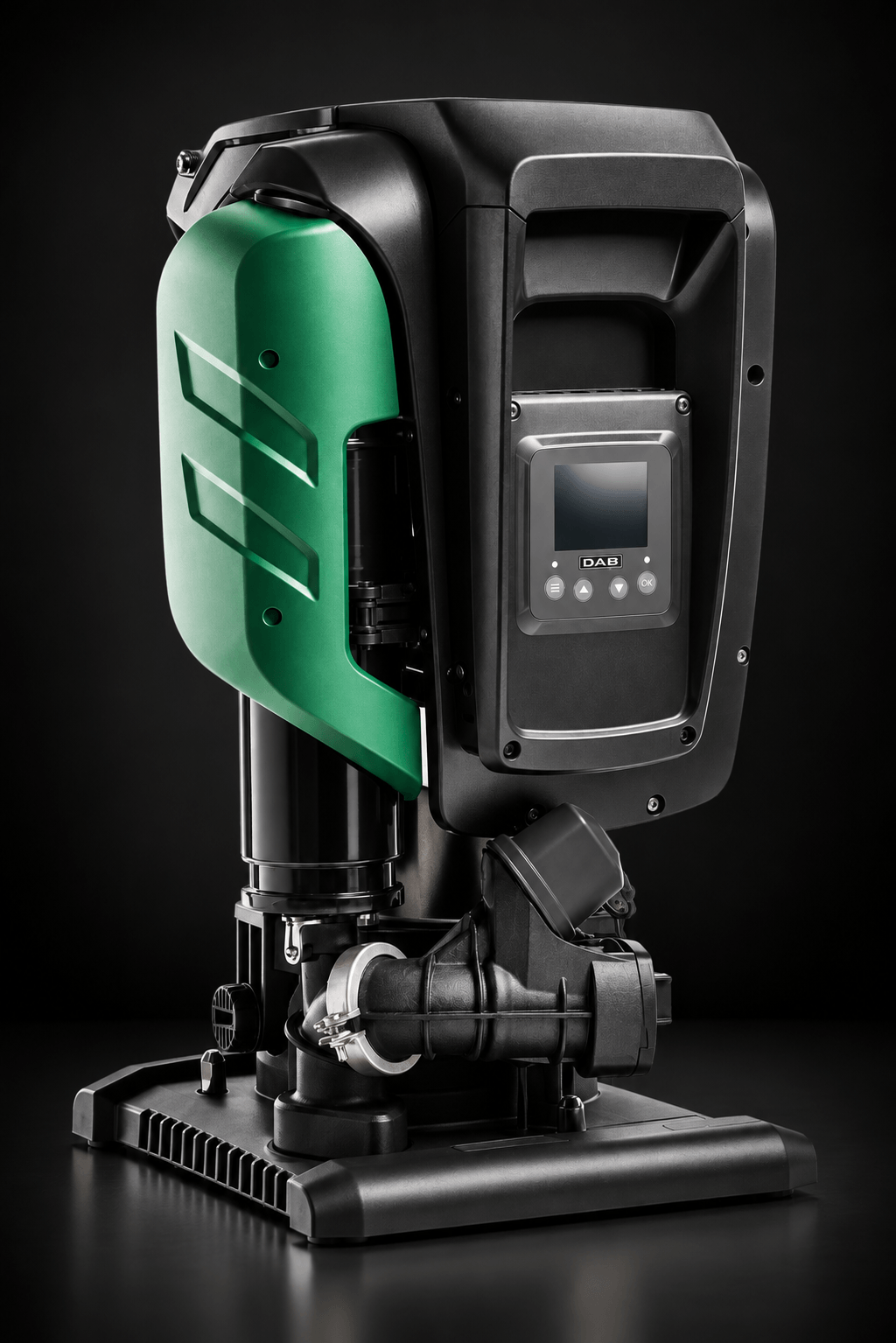

ESYBOX MAX
The natural evolution of the ESYBOX platform into commercial building services — a modular, professionally assembled booster set for larger installations.
Suits: buildings up to around ten storeys, mid-sized hotels and hospitals.
Smarter water management
Selected ESYBOX models connect to a DAB monitoring app. Compatibility varies by product — check the model before assuming a feature applies.
|

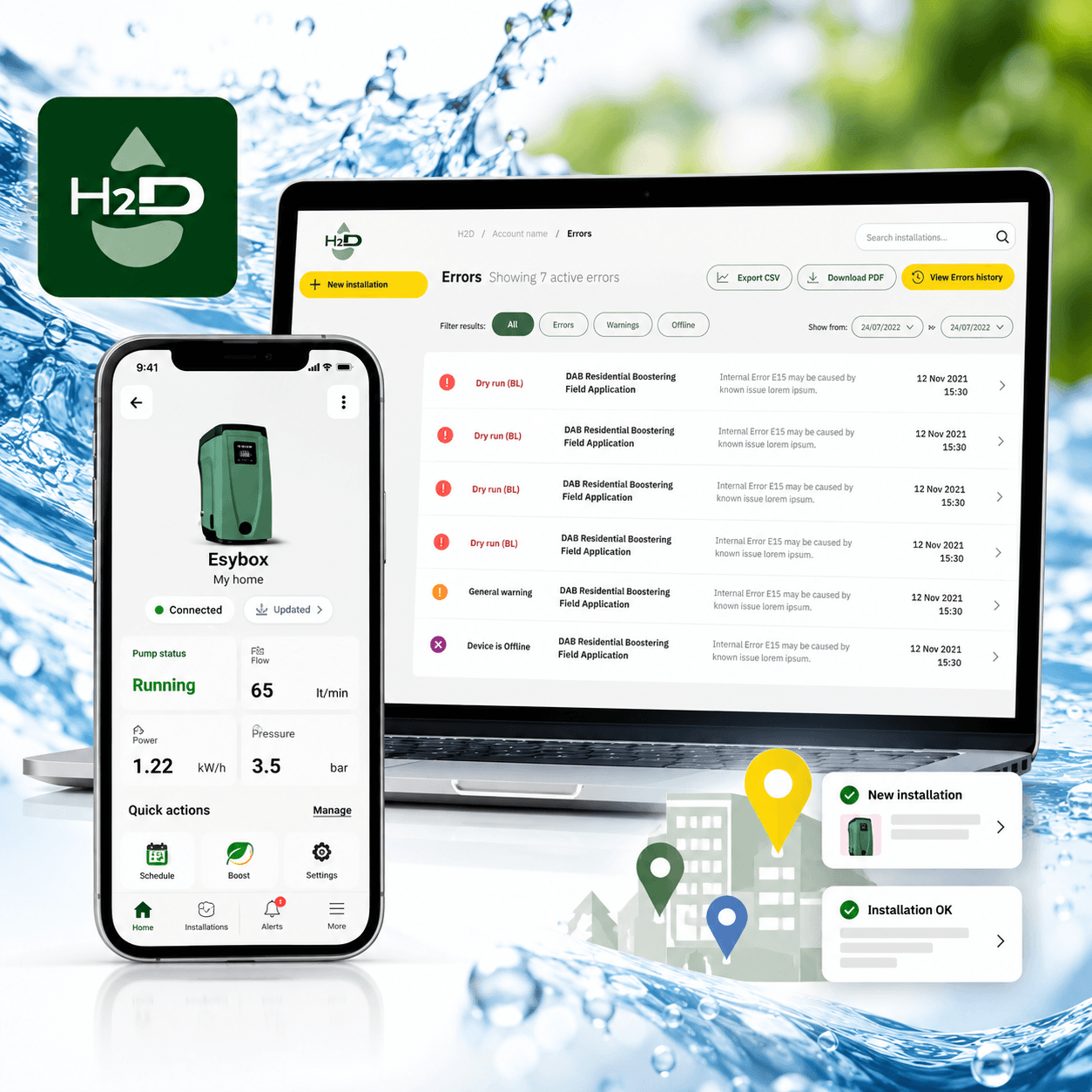

H2D app
Configure pressure settings, view live status, receive alerts and diagnose issues remotely.
Available on: ESYBOX POP, ESYBOX MINI3, ESYBOX
|
DConnect app
Cloud-based monitoring of pump status, history and remote parameter changes for submersible and commercial sets.
Available on: ESYBOX DIVER (via DConnect Box 2), ESYBOX MAX
|
Built-in wireless connectivity
No separate gateway or modem is required — supported models connect directly to Wi-Fi.
Availability varies by model — confirm before specifying
|
|
Fast, tool-light commissioning
POP and MINI3 arrive fully assembled with rotatable connections, reducing on-site fitting time in tight spaces.
Available on selected ESYBOX solutions
|
Modular servicing
Components on POP, MINI3, ESYBOX and MAX can be replaced independently, cutting downtime and service cost.
Available on selected ESYBOX solutions
|
Wireless multi-pump sets
MINI3 and ESYBOX pair wirelessly for standby cover or extra capacity, without additional cabling.
Available on selected ESYBOX solutions
|
|
Cable-free accessory connection
DIVER's NFC and PLC technology lets float switches and level sensors be added without extra wiring.
Available on ESYBOX DIVER
|
On-Site Assembly
MAX ships in smaller packaging and is finished on site, solving access problems in narrow corridors and doorways.
Available on ESYBOX MAX
|
Remote diagnostics
H2D and DConnect let installers check status and troubleshoot before travelling to site.
Available on selected ESYBOX solutions
|
Which ESYBOX should I choose?
A quick navigation aid to point you toward the right family member — not a substitute for hydraulic sizing.
|
1
Where will it install?
Inside the building, in a well or tank, or a commercial plant room?
|
2
What's the application?
Residential, irrigation, groundwater or commercial building services.
|
3
What scale?
Single flat, standard home, larger residential block, or commercial building.
|
4
Suggested model
POP or MINI3 (small), ESYBOX (larger residential), DIVER (submerged), MAX (commercial).
|
Frequently asked questions about ESYBOX
A family of fully integrated, electronically controlled pressure-boosting solutions from DAB, covering compact residential, larger residential, submerged and commercial installations.
ESYBOX POP suits small flats, ESYBOX MINI³ suits homes up to three floors, and ESYBOX suits larger houses or small apartment blocks up to nine flats.
MINI³ is DAB's compact solution for smaller homes and gardens. ESYBOX offers the same integrated technology at a larger scale, suited to houses and small apartment complexes, and supports wireless sets of up to four pumps.
ESYBOX DIVER is designed for submerged installation in wells, boreholes or tanks, for pressure boosting, irrigation, groundwater extraction and rainwater reuse.
ESYBOX MAX is the model built for commercial building services, offering modular multi-pump configurations for larger installations such as hotels and hospitals.
Yes. Every model in the range uses an electronic frequency inverter to keep pressure constant according to demand.
POP, MINI³ and ESYBOX connect to the DAB H₂D app. ESYBOX DIVER and ESYBOX MAX connect via DConnect. Always confirm compatibility for the specific unit being specified.
ESYBOX MINI³ and ESYBOX DIVER both list gardening and irrigation as supported applications.
Use the selection guide above as a starting point, then confirm the final choice against required flow, pressure and installation conditions — or contact Bosta's specialists for support.
