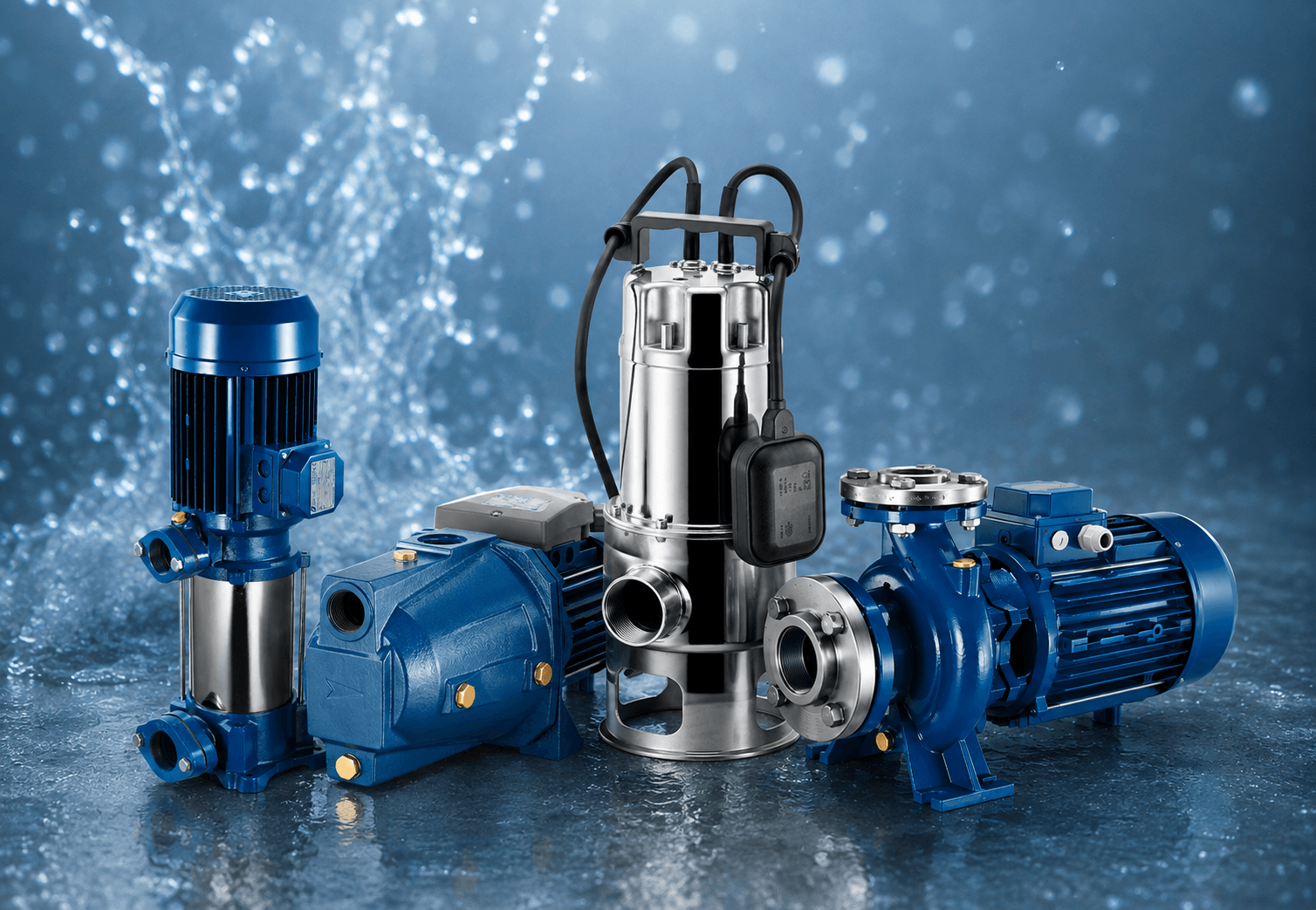

Six pump groups for professional water systems
Bosta supplies a selected FORAS range in six pump groups. Start with the job the pump has to do, then choose the right family for the application.

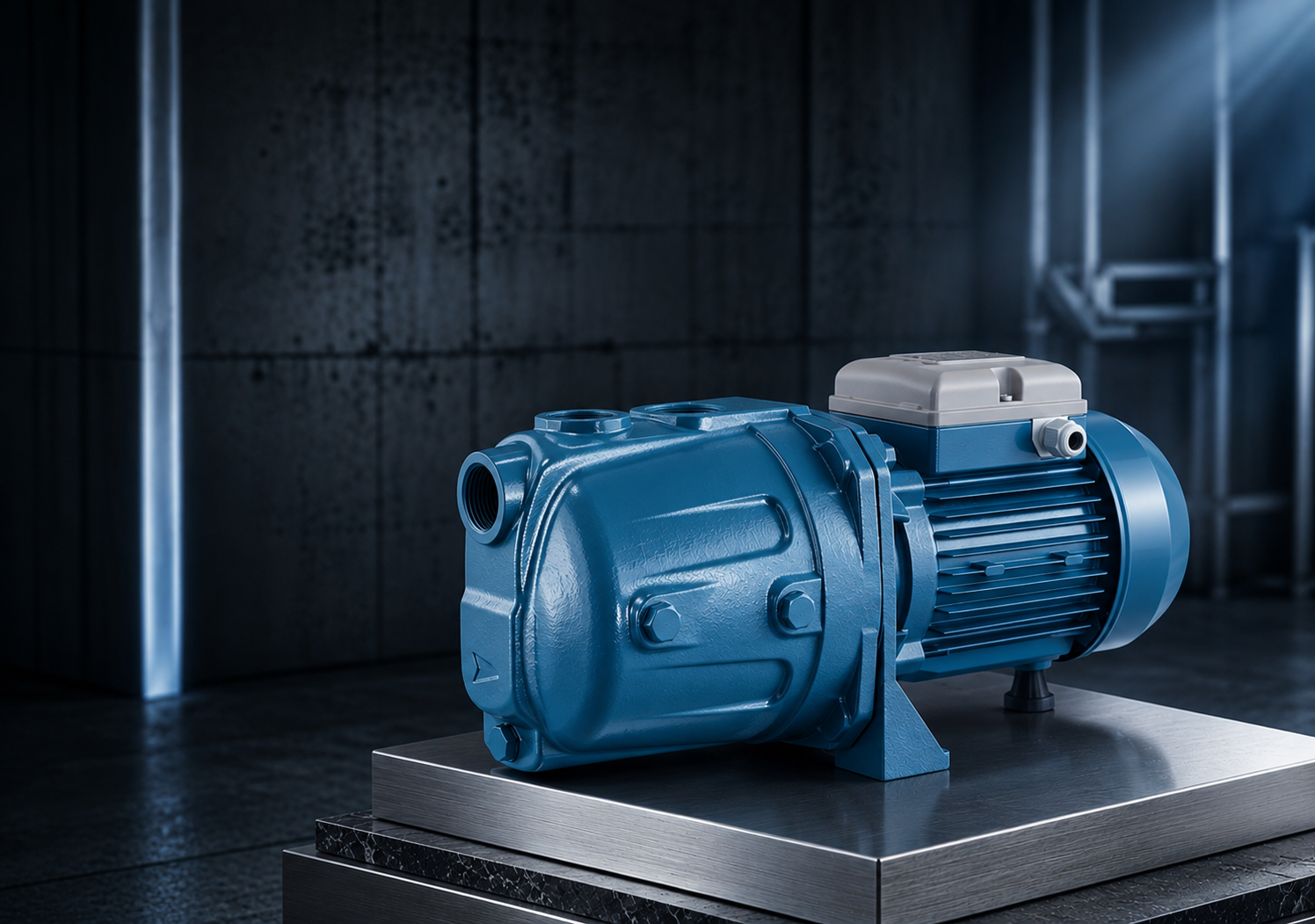

Jet pumps
Self-priming pumps for domestic water supply, garden irrigation, liquid transfer and tank emptying. Commonly combined with a pressure vessel.
JA · JXF

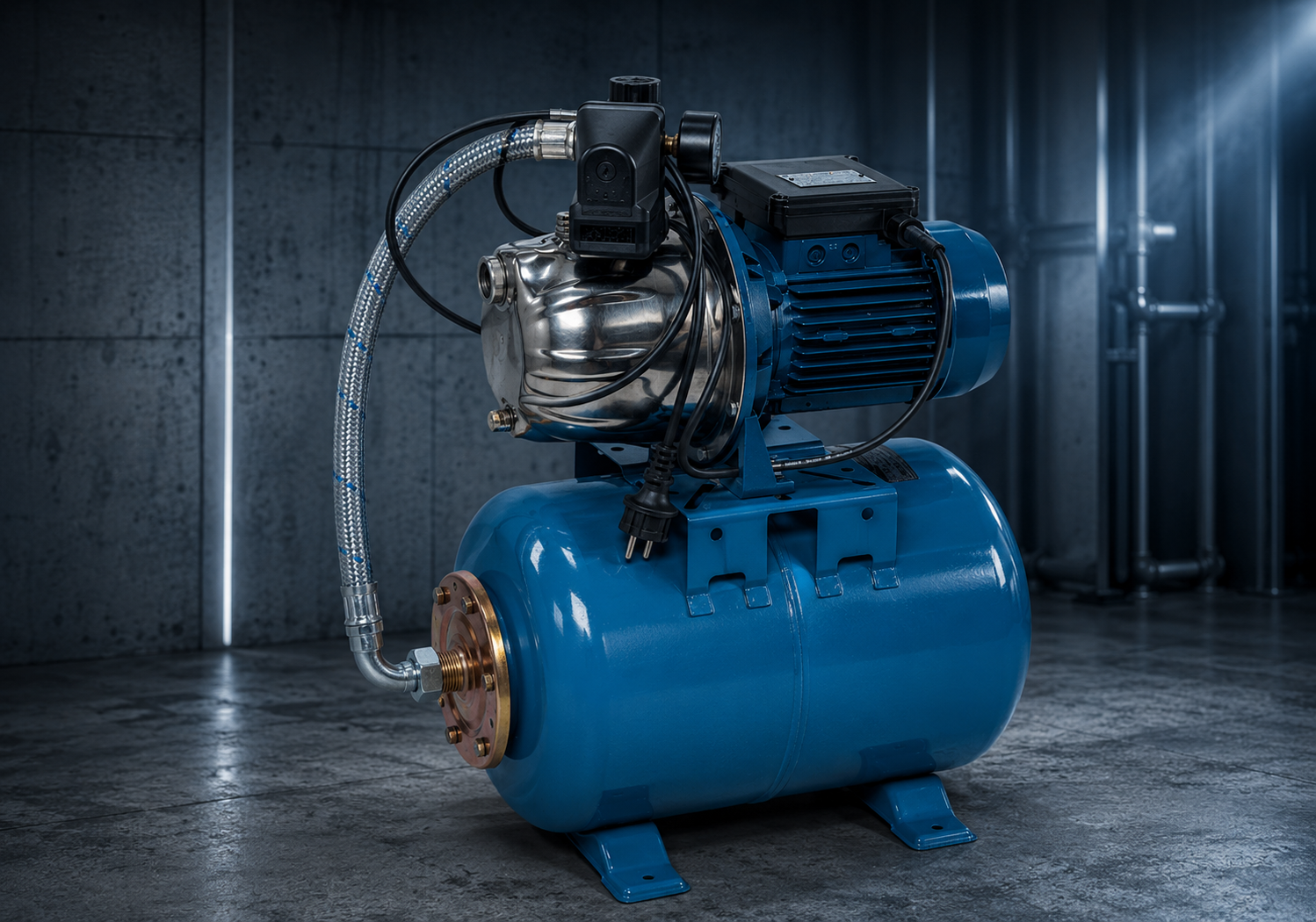

Pressure sets
A FORAS jet pump supplied with a pressure tank, pressure switch and pressure gauge for pressurised water supply. Set contents vary by model.
JA pressure sets · JXF pressure sets

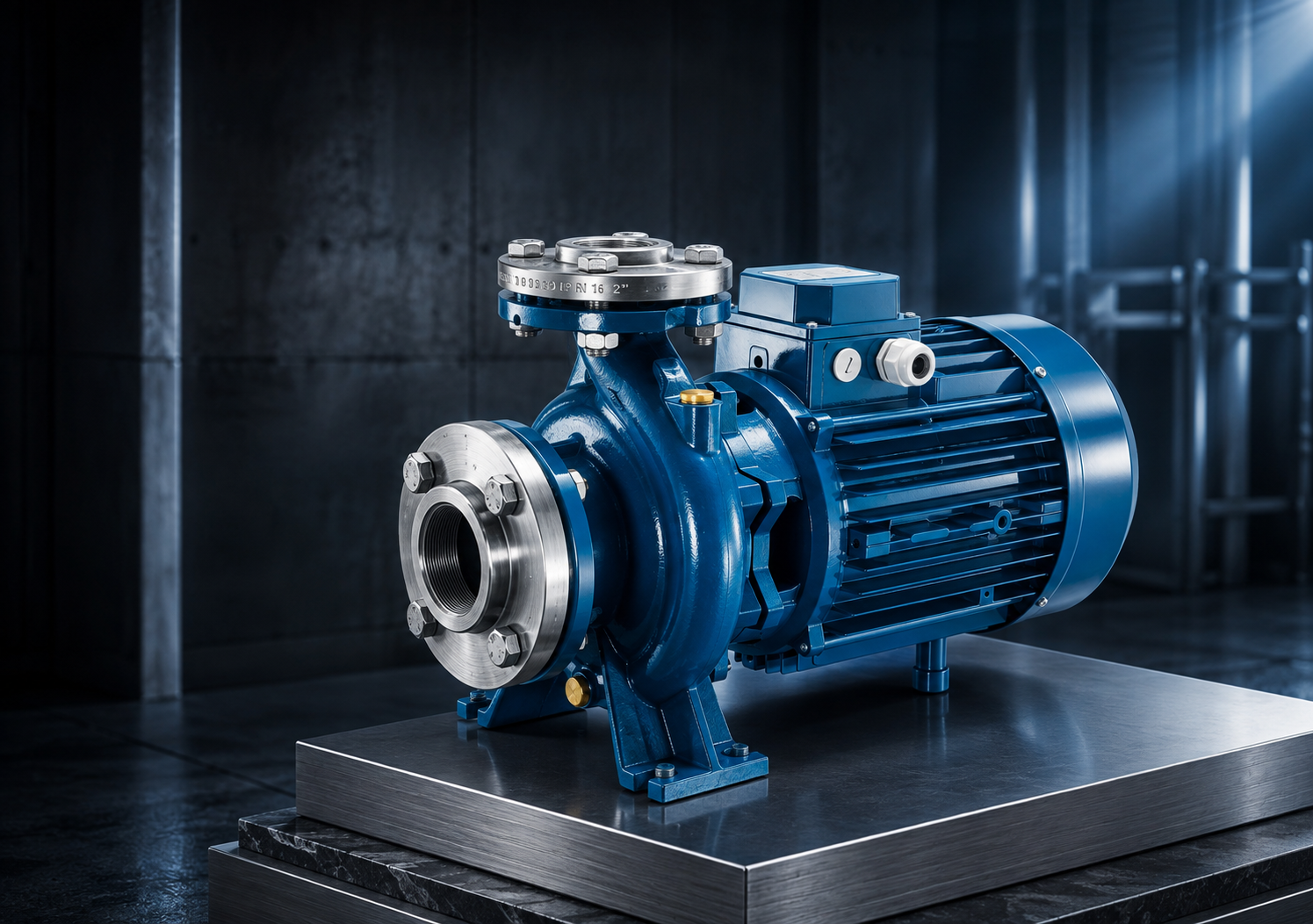

Peripheral & centrifugal pumps
Peripheral and centrifugal pumps for water supply and general surface pumping applications. PE models are peripheral pumps, while KM, KB and MN cover centrifugal duties with threaded or flanged connections.
PE · KM · KB · MN

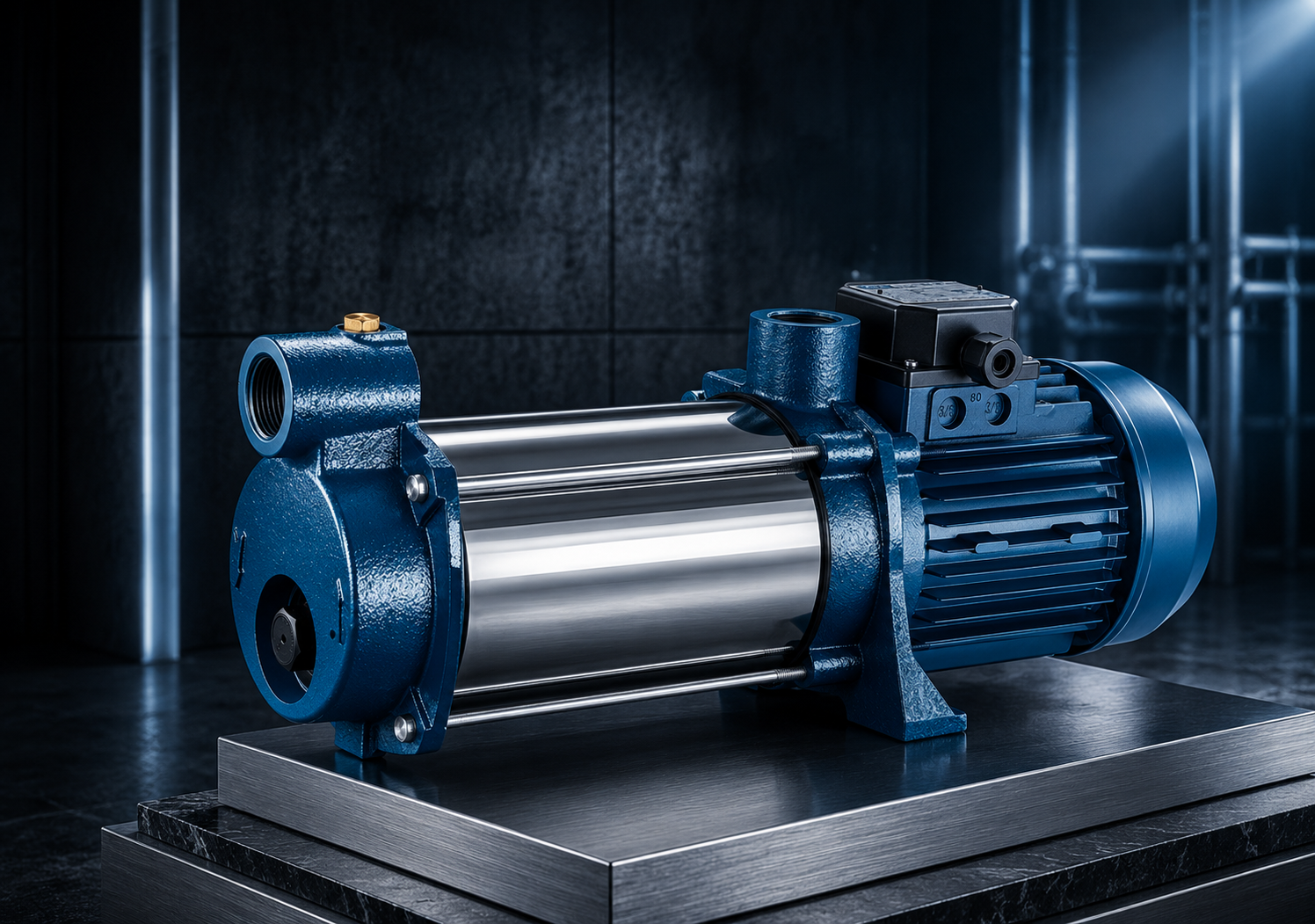

Multi-stage pumps
Multi-stage centrifugal pumps in horizontal (MON, P3S) and vertical (P7SV) formats. MON is a self-priming model for small and medium pressurisation systems.
MON · P3S · P7SV
Submersible pumps
Multi-stage centrifugal pumps in horizontal (MON, P3S) and vertical (P7SV) formats. MON is a self-priming model for small and medium pressurisation systems.
MON · P3S · P7SV
Liquid transfer pumps
Volumetric liquid-ring pumps described by the manufacturer for liquid transfer, including volatile liquids. Bosta lists the PC 80 M as a fuel pump. Check the liquid before selection.
PC
Choose by application
Four broad applications represent the FORAS range at Bosta. Not every family is used in every application.
|

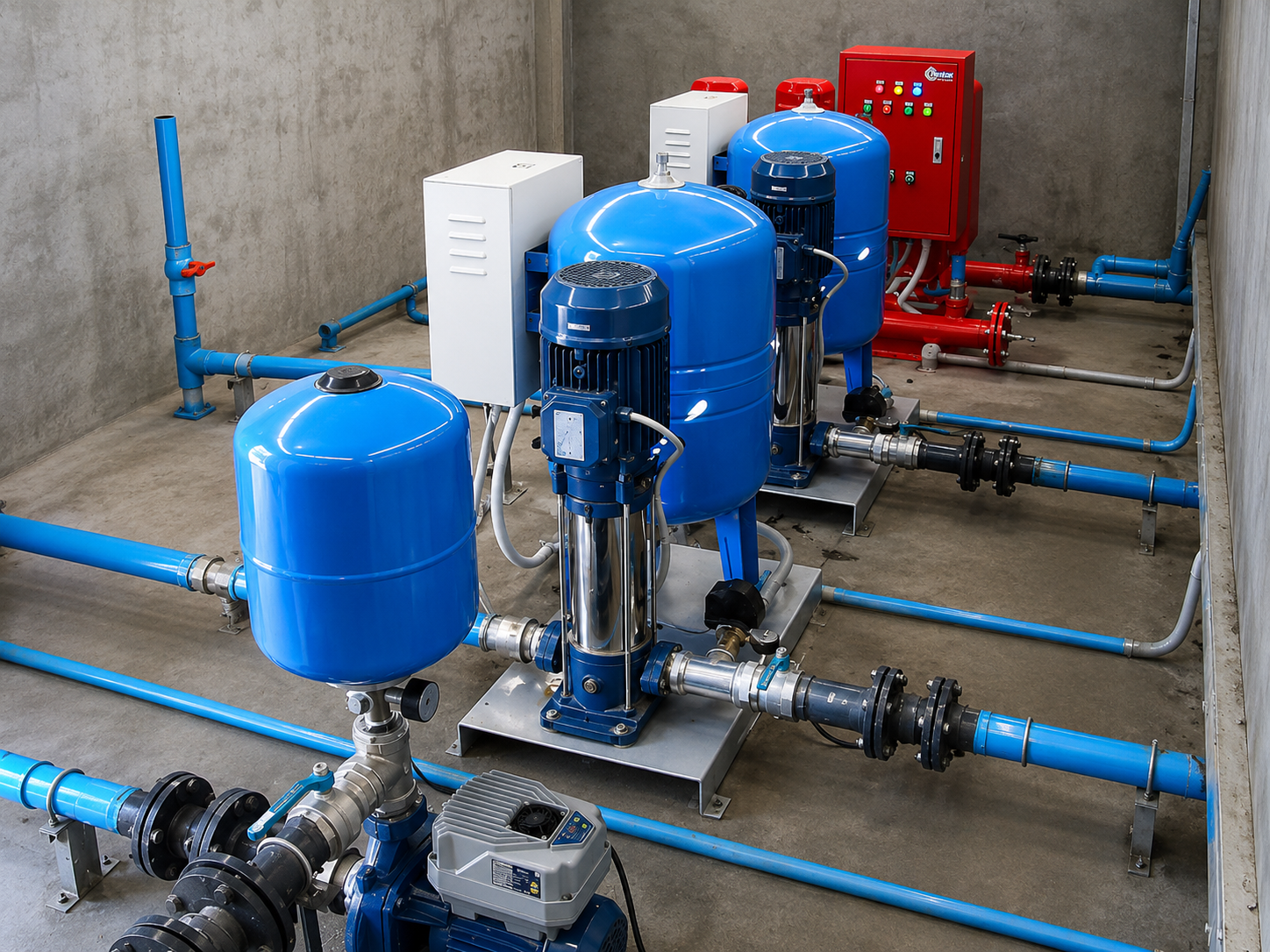

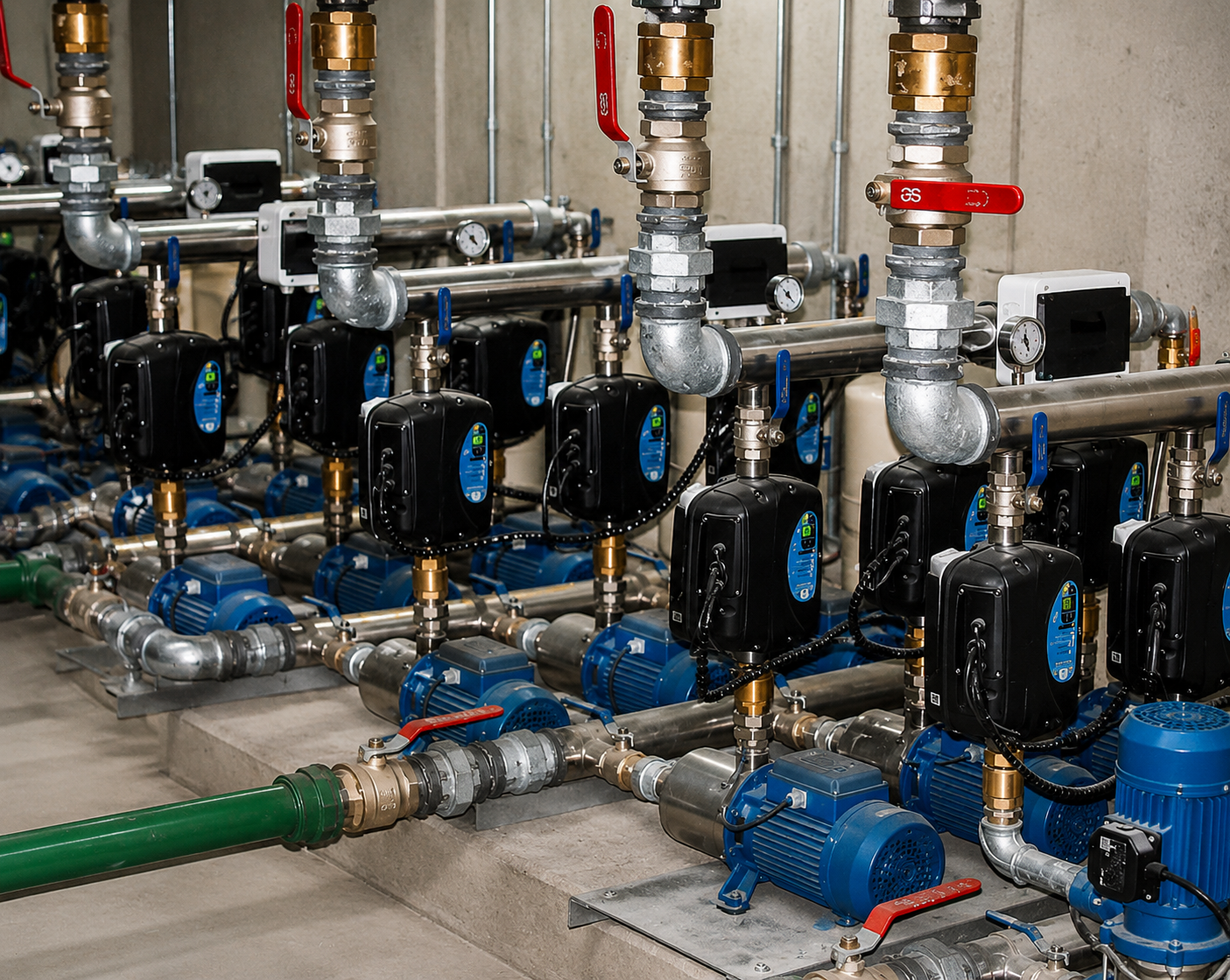

Water supply & pressure boosting
Pressurised water supply for houses, gardens and small systems, typically with a pressure vessel.
Relevant FORAS families:
JA · JXF · JA and JXF pressure sets · MON |

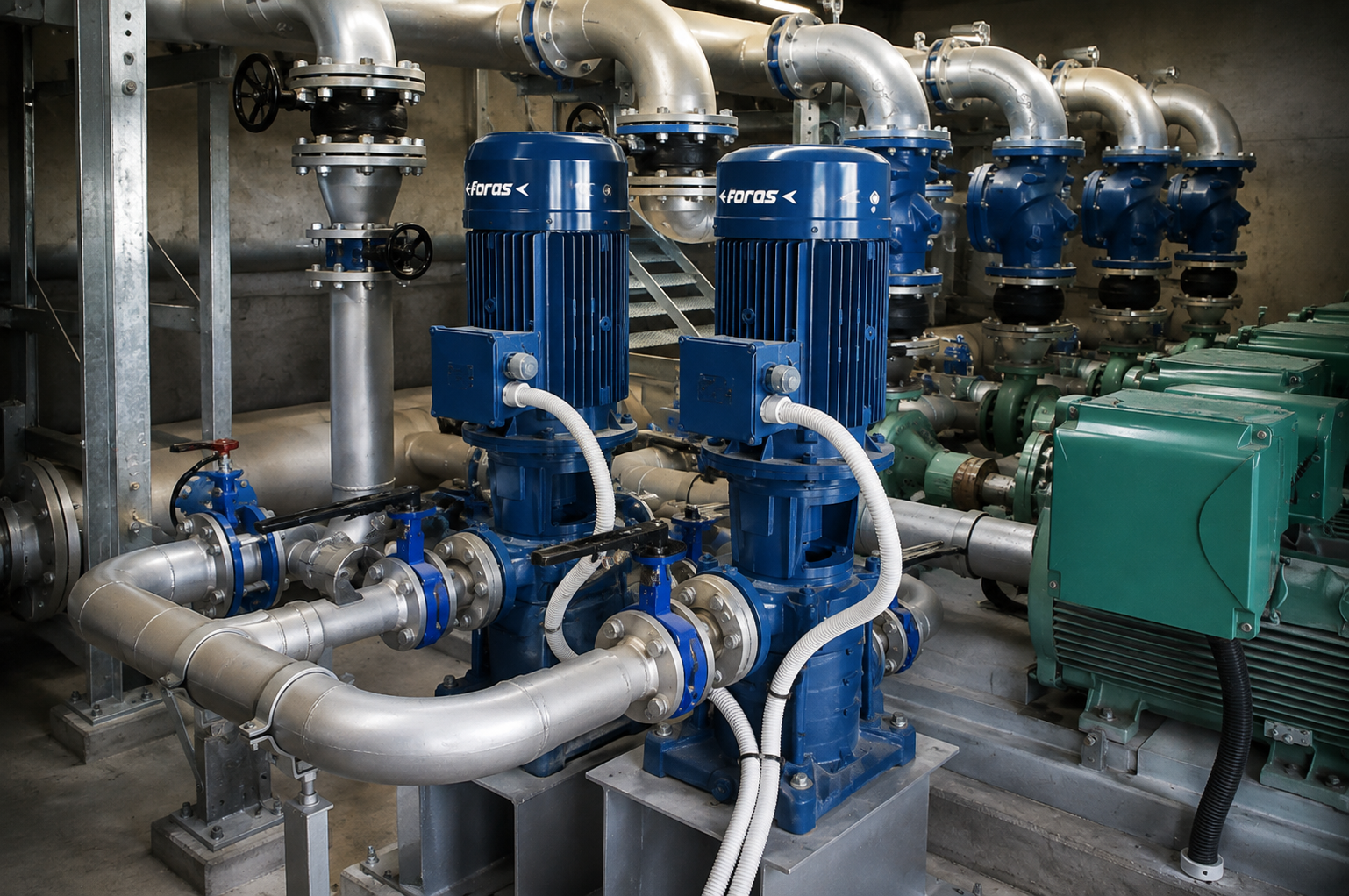

Irrigation & agriculture
Garden irrigation, rainwater use and larger irrigation systems, including submersible supply from a borehole.
Relevant FORAS families:
JA · JXF · MN · 5FES |
|
Industrial water systems & liquid transfer
Water supply, cooling, heating and pressurisation in industrial systems, plus liquid transfer and tank emptying.
Relevant FORAS families:
MN · JA (transfer and tank emptying) · PC (liquid transfer) |
Drainage & submersible water supply
Drainage and dewatering are one duty; borehole water supply is another. Select the series for the job.
Drainage & dewatering: SP · DS · DC · FV
Borehole water supply: 5FES |
Selecting the right FORAS pump
Select the model using the required flow, the total head and the individual FORAS pump curve. Suction capability and operating limits are model-specific, so always check the product data.
|
01
Flow requirement
Work out how much water the application needs. Select from the pump curve of the model, not from a single headline figure.
|
02
Required head
Total head is the pressure the pump must deliver at the required flow, including height and pipe losses. Check it against the FORAS curve of each candidate.
|
03
Water source
Tank, well, borehole, sump or pit? The source and its position relative to the pump help decide the pump group.
|
|
04
Surface or submersible
Surface pumps sit outside the liquid; submersible pumps work in it. Drainage (SP, DS, DC, FV) and borehole supply (5FES) are different duties.
|
05
Liquid & application
Clean water, drainage water or a liquid such as fuel? Check the liquid and operating conditions on the product page of the specific model.
|
06
Power supply
Models are available for single-phase and three-phase supplies. Check the electrical data of the model against your site supply.
|
How the FORAS groups differ
A quick comparison of role and installation. Model-specific data is available on the individual product pages.
| Pump group | FORAS families | Installation | Typical role | Main selection consideration |
|---|---|---|---|---|
| Jet pumps | JA · JXF | Surface | Self-priming pumps for water supply, irrigation and liquid transfer | Suction conditions, flow and head |
| Pressure sets | JA · JXF | Surface, supplied as a set | Pressurised water supply with tank, switch and gauge | Set contents, flow and head |
| Centrifugal pumps | KM · KB · MN | Surface | General surface pumping; threaded (KM, KB) or flanged (MN) | Connection type, flow and head, liquid |
| Multi-stage pumps | MON · P3S · P7SV | Surface: horizontal (MON, P3S) or vertical (P7SV) | Pressurisation duties; MON is self-priming | Orientation, flow and head, self-priming (MON) |
| Submersible pumps | SP · DS · DC · FV · 5FES | Submersible | Drainage and dewatering (SP, DS, DC, FV); borehole water supply (5FES) | The duty first, then flow and head |
| Liquid transfer pumps | PC | Surface | Liquid transfer with a liquid-ring pump | Liquid suitability and manufacturer guidance |
Technical values such as flow, head, temperature and connection size are model-specific. Refer to the individual product page before selection.
More than a pump
A FORAS pump is usually one part of a larger installation. Bosta can supply the pump together with pipework, valves, filtration and other components from its wider assortment.
A typical, application-dependent arrangement. Not every installation needs every element.
|
Pump selection
Choose the FORAS family for the application, then confirm the individual model against the required flow and total head.
|
Filtration
Where filtration is required by the water source or application, Bosta offers AZUD filtration solutions and skids.
|
|
Pipework & valves
Depending on the application, complete the installation with suitable pipework, fittings and valves from the wider Bosta range.
|
Applications & solutions
Bosta supports complete water projects across irrigation, industrial applications and rainwater systems.
|
Popular Foras products
FORAS – a Pentax Industries brand
FORAS designs, produces and markets electric water pumps for domestic, residential, irrigation and industrial use. Conception, design and assembly are carried out in-house, and each pump is checked with in-line tests on its hydraulic and electrical parts.
|
1990
Year FORAS was founded
|
In-house
Design, assembly and R&D
|
In-line tests
Hydraulic and electrical parts
|
Pentax Industries publishes ISO 9001, ISO 14001 and ISO 45001 certificates for its management systems.
Frequently asked questions about Foras
Start with the application and the water source. FORAS jet pumps (JA, JXF) are self-priming pumps for domestic water supply, garden irrigation, liquid transfer and tank emptying, and are commonly combined with a pressure vessel. The centrifugal families (KM, KB, MN) have threaded or flanged connections; the MN is a monobloc horizontal pump built to EN 733. For either, select the model from the required flow, the total head and its pump curve.
When your flow and total head calculation points to a multi-stage curve. Compare the curves of the candidate models rather than relying on a rule of thumb. At Bosta the FORAS multi-stage pumps are the horizontal MON and P3S and the vertical P7SV; the MON is described by the manufacturer as self-priming and suited to small and medium pressurisation systems.
The manufacturer describes the JA, JXF and MON families as self-priming. Do not assume that other families are: check the data for the specific model on its product page.
A pressure set combines a FORAS jet pump (JA or JXF) with a pressure tank, pressure switch and pressure gauge. JA sets also include hose, coupling and connectors, and set contents vary by model. A standalone pump is the pump only. JA sets are described by Bosta as ready for assembly and installation by a qualified electrician.
When the pump has to work in the liquid. Then choose by duty: drainage and dewatering (SP, DS, DC, FV) or borehole water supply (5FES). These are different jobs and the series are not interchangeable, so check the limits on the product page.
The application and liquid, the water source and where it sits relative to the pump, the required flow, the total head (height, pipe losses and the pressure needed at the outlet), the pipe size and connection, and the electrical supply (single-phase or three-phase).
Work out the flow you need and the total head at that flow, then find the model whose curve covers that duty point. Use the individual FORAS pump curve and the data on the product page. The manufacturer also provides an online Pump Selector; confirm availability at Bosta before you specify.
Bosta's wider assortment includes PVC and PE pipe systems, metal valves and fittings, Azud filtration and skids, and irrigation and industry solutions. Which components you need depends on your system and application. Contact Bosta with your requirements and we can help you select the relevant products.
