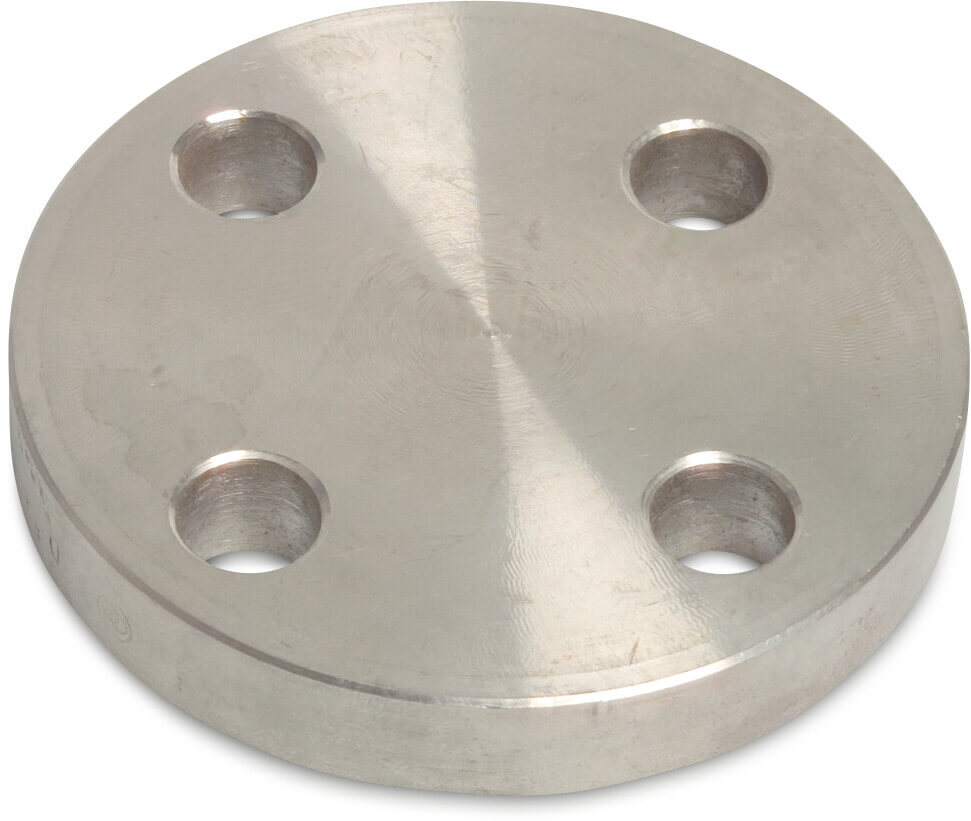

Blind flange stainless steel 316 DN150 DIN flange 16bar DN150 PN16

Product number: 0080662
Blind flange stainless steel 316 DN150 DIN flange 16bar DN150 PN16
Blind flange stainless steel 316 DN150 DIN flange 16bar DN150 PN16

Manuals & drawings

Select your item below or order directly via full product table
Size
All displayed prices are gross prices. Please log in or contact sales for custom pricing.
Price excl. VAT £274.15 / 1 pcs
£274.15 / pcs
Price incl. VAT £328.98 / 1 pcs
£328.98 / pcs
2 in stock - minimum delivery time: 3-6 working days
pcs
Box qty:
1 pcs
MSQ:
1 pcs

Fast, free shipping on orders over £450*

Your trade partner in water technology

9.1/10 Read reviews

Frequently bought together

Jason Cap PP 25 mm compression 16bar black/blue DVGW/KIWA/WRAS/SVGW
0707192
Jason Cap PP 25 mm compression 16bar black/blue DVGW/KIWA/WRAS/SVGW

£1.32
Profec Sealing tape PTFE 12 mm white 10m
0070011
Profec Sealing tape PTFE 12 mm white 10m

£0.86
Profec Elbow 90° PVC-U 32 mm glue socket 16bar grey KIWA
0110108
Profec Elbow 90° PVC-U 32 mm glue socket 16bar grey KIWA

£0.96
Profec Wormdrive hose clip stainless steel 304 20 mm x 32 mm type W4 12 mm
0464483
Profec Wormdrive hose clip stainless steel 304 20 mm x 32 mm type W4 12 mm

£0.80
Pressure pipe PVC-U 63 mm x 2,4 mm glue socket x plain 10bar ISO-PN10 grey 5m
0309063
Pressure pipe PVC-U 63 mm x 2,4 mm glue socket x plain 10bar ISO-PN10 grey 5m

£3.10
Profec Pipe clamp PP 20 mm black type 2
0110951
Profec Pipe clamp PP 20 mm black type 2

£0.49
Greener choice Greener choice
Pressure pipe PE 22 mm x 2.4 mm plain 6bar black 50m
0700578
Pressure pipe PE 22 mm x 2.4 mm plain 6bar black 50m

£0.89
Profec Nr. 310 Nut brass 3/8" female thread 30bar
0710406
Profec Nr. 310 Nut brass 3/8" female thread 30bar

£0.73
Jason Elbow 90° PP 20 mm compression 16bar black/blue DVGW/KIWA/WRAS/SVGW
0706520
Jason Elbow 90° PP 20 mm compression 16bar black/blue DVGW/KIWA/WRAS/SVGW

£1.84
Hose tail adaptor PP 3/4" x 20 mm male thread x hose tail 6bar grey
0330179
Hose tail adaptor PP 3/4" x 20 mm male thread x hose tail 6bar grey

£1.09

Technical details

  • DIN Standard
    DIN 2527
  • Holes
    8
  • DN
    150
  • Thickness
    22 mm
  • Bolt hole
    22 mm
  • Pressure
    16 bar
  • Flange
    PN16
  • Connection
    DIN flange
  • Outer ø
    285 mm
  • Material
    stainless steel 316
  • EAN
    4019305016667
  • Part number
    0080662

Dimensions

  • O
    22 mm
  • PCD
    240 mm
Dimensions

Product description

The Blind flange PN16, DIN 2527 is a standard Stainless Steel 316 blind flange according to DIN 2527. The fitting has a DIN flange connection. The fitting is available in a wide range of sizes. It has a maximum working pressure of 16 bar.

The Blind flange PN16, DIN 2527 is made from stainless steel 316.
Read more Read less

Variants

Product number:
Price
Box qty
MSQ
Stock
No variants found
Adjust or clear the selected filters to see available variants.
0080657
DN50
£75.11
1
1
(10)
0080658
DN65
£76.66
1
1
0080659
DN80
£117.58
1
1
(1)
0080660
DN100
£111.66
1
1
(12)
0080661
DN125
£110.70
1
1
0080662
DN150
£274.15
1
1
(2)
