Grundfos Multi-stage centrifugal pump stainless steel DN35 DIN flange 7,9A 400VAC type CRI 5-29 A FGJ I V HQQV
Product number: 7039748
Manuals & drawings
Select your item below or order directly via
full product table
All displayed prices are gross prices. Please log in or contact sales for custom pricing.
Price excl. VAT
£3,982.84 / 1 pcs
£3,982.84 / pcs
Price incl. VAT
£4,779.41 / 1 pcs
£4,779.41 / pcs
Available at supplier, please contact us
- available on request, please contact sales team
Frequently bought together
0464483
0309063
0706525
0411804
Technical details
-
Motor RPM2770
-
Max flow rate8.5 m³/h
-
Maximum ambient temperature40 °C
-
Impellers29
-
Pump bodystainless steel 316
-
SizeDN35
-
Press35
-
IP valueIP55
-
Ampere7,9 A
-
Materialstainless steel
-
Output Power5.5 HP
-
Shaftstainless steel 316
-
Temperature range-20°C - 90°C
-
Frequency50 Hz
-
Material impeller 1stainless steel 304
-
Voltage400VAC
-
TypeCRI 5-29 A FGJ I V HQQV
-
ConnectionDIN flange
-
EAN4019305785174
-
Part number7039748
-
ManufacturerGrundfos

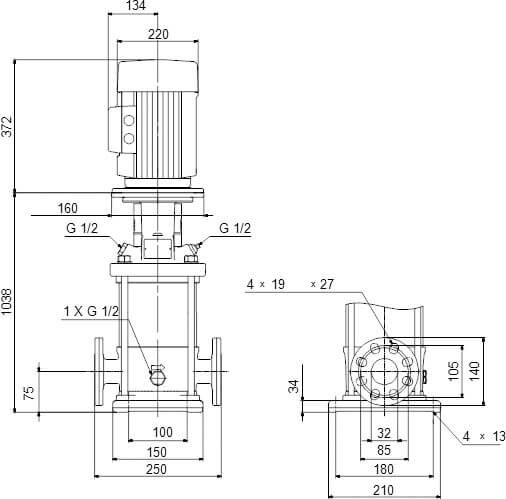

Dimensions
-
Cb-175 mm
-
Cb-275 mm
-
H-11410 mm
-
L250 mm
-
W-1210 mm
-
ØDi-135 mm
-
ØDi-235 mm
Similar products
Product description
Grundfos CRI pumps are vertical, non-self-priming, multistage, in-line, centrifugal pumps for installation in pipe systems and mounting on a foundation, suitable for industrial applications. This design provides a more compact pump design and pipework. CR pumps are designed for a variety of applications ranging from the pumping of potable water to the pumping of chemicals. The pumps are therefore suitable for a wide range of pumping systems where the performance and material of the pump meet specific demands.
